Wyse WYSE PC 286 MODEL 2108

Chipset

IBM AT chipset

Sockets

FSB speed

8MHz

Form factor

Single Board Computer

Dimensions

334mm x 122mm

Cache

None/Integrated in the CPU

Max RAM size

16MB

RAM type

DIP-18 (4bit)

PSU connector

Empty

Multi CPU support

I/O ports

AT Keyboard

Expansion slots

16-bit ISA

Last updated 2024-12-07T21:33:34Z

Board info score is 8.7/10

Chips

Chipset part
Intel 82284 (Clock Generator/Ready Interface) Intel 82288 (Bus Controller) Texas Instruments SN74LS612N (Memory Mapper) (multiple brand) Discrete Logic Intel 8237A (DMA Controller) Intel 8254 (Programmable Interval Timer) Intel 8259A (Programmable Interrupt Ctrl.)
Human Interface
(multiple brand) 8042 (Keyboard Controller)
Real-Time Clock
(multiple brand) 6818

CPU family support

2 BIOS files available

Phoenix - 2 entries

POST string

Note

Core Ver.

BIOS Ver.

Logs

POST string

Note

Core version

BIOS version

2.74

Logs

POST string

Note

80286 ROM BIOS Version 1.83

Core version

BIOS version

1.83

Logs

No drivers available

1 board document available

Release date

File

Logs

Release date

File

MTL Jumper manual

Logs

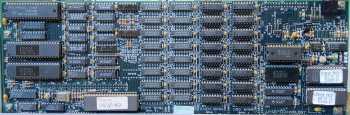

Image 1 of 7 (Microhouse)

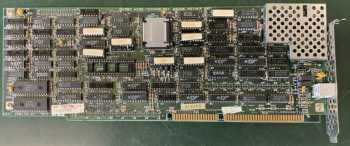

Image 2 of 7 (bjwil1991 (retro-pc_user))

Image 3 of 7

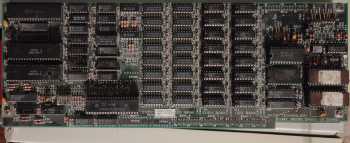

Image 4 of 7 (fool)

Image 5 of 7 (bjwil1991 (retro-pc_user))

Image 6 of 7

Image 7 of 7 (Microhouse)

Disclaimer

The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
