[Unknown] N286-5 (1167)
Logs
chipChipset
cpuSockets
DIP40 PLCC68
speedFSB speeds
12.5MHz16MHz20MHz
moboForm factor
Baby AT (max 220 x 330 mm)
dimDimensions
330mm x 218mm
chipCache
None/Integrated in the CPU
ramMax RAM size
8MB
ramRAM type
30-pin SIPP
pwrPSU connector
AT (6-pin P8 + 6-pin P9)
maxcpuMulti CPU support
no
connI/O ports
1x
AT Keyboard
cardExpansion slots
6x
16-bit ISA
2x
8-bit ISA
Last updated 2025-02-15T12:23:07Z
Board info score is 9.1/10
bios 2 BIOS files available

vendor AMI - 2 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
ENET-1167-040990
Note
Core version
040990
BIOS version
Logs
POST string
ENET-1167-043089-K8
Note
ADD-X Systèmes AS212
Core version
043089
BIOS version
Logs
drv 1 driver available
Name
Version
OS support
Size
Filename
Name
Version
2.2.0
OS support
MS-DOS
Size
40KB
Filename

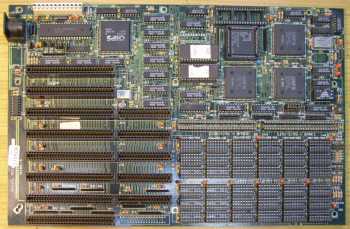

image1 Image 1 of 4 (Microhouse)

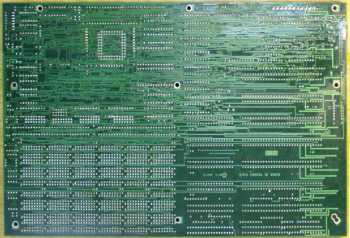

image2 Image 2 of 4 (Ant Goffart)
image3 Image 3 of 4
image4 Image 4 of 4
