PCChips/Hsin Tech M915 (V1.3)
Chipset
Socket
FSB speeds 25MHz33MHz40MHz50MHz
Form factorBaby AT (max 220 x 330 mm)
Dimensions330mm x 218mm
Cache
64KB128KB256KB512KB1MB
Max RAM size
256MB
RAM type 72-pin FPM
PSU connector
Multi CPU supportno
I/O ports1x
AT Keyboard
Expansion slots4x
16-bit ISA
4x
32-bit PCI
2x
32-bit VLB
Known issues
- Fake cache
The motherboard may include a non-functional or counterfeit SRAM cache, which can adversely affect performance. Signs of fake cache often include soldered QFP or DIP-chips labeled "WRITE-BACK" with traces that do not connect to the chipset.
- DIP chips can typically be removed and replaced with functional SRAM chips in sockets to restore cache functionality.
- QFP fake cache chips are often not replaceable with functional cache as the PCB footprints are not chipset connected.
Last updated 2025-02-23T20:28:40Z
Board info score is 8.2/10
Chips
-
Chipset part
-
Clock Synth / PLL
-
Real-Time Clock
CPU family support
1 BIOS file available
AMI - 1 entry
POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
41-0B00-001437-00101111-101094-486AVIP
Note
Core version
101094
BIOS version
Logs
No drivers available
No board documents available
Chip
Release date
File
Logs
Family
Release date
File
Logs
Image 1 of 2 (Realloy)

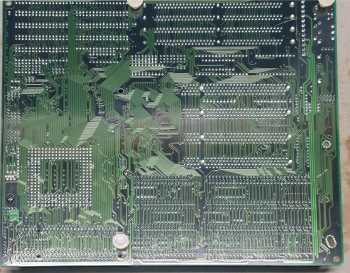

Image 2 of 2 (Realloy)
Disclaimer
The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
