Chipset
Socket
FSB speeds
Form factor
Dimensions
Max VRAM size
RAM type
PSU connector
Also known as
- Packard Bell PB440
- Packard Bell PB440T
- Packard Bell Legend Multimedia 486 PC
I/O ports
Expansion slots
Known issues
- Leaky Ni-Cd clock battery
The Ni-Cd battery may be leaking, risking damage to PCB layers & nearby components. Promptly remove the battery & clean corrosion/alkaline salts from the board. Use white vinegar to dissolve salts, but exercise caution as vinegar can corrode exposed metals. A thorough examination & repair may be needed. Replace battery with guide: https://github.com/wiretap-retro/Not-A-Varta
- L2 Cache decreases performance
This board is known to have degraded performance when L2 cache is installed and enabled.
Notes
Some boards have a game connector but it is not functional, it should be disabled with JP15
J21 is the second serial port at TTL level for an optional modem or level shifted serial port breakout
Boards have either a GD5424 or GD5428 video chip
A PB430 with a CL5424 has 512 kB of video memory which can be upgraded to 1 MB
A PB430 with a CL5428 has 1 MB of video memory which can be upgraded to 2 MB
Chips
-
Chipset part
-
Human Interface
-
Real-Time Clock
-
Signal transmitter/receiver
-
Super I/O
CPU family support
1 BIOS file available
Phoenix - 2 entries
5 drivers available
MS-DOS
Windows 3.1x
Windows 3.1x
Windows 3.1x
Windows NT 3.1
Windows NT 3.5x
Windows NT 3.1
Windows NT 3.5x
2 board documents available
1 other file available

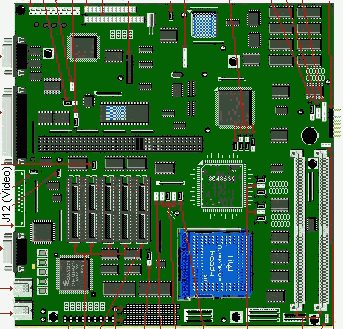

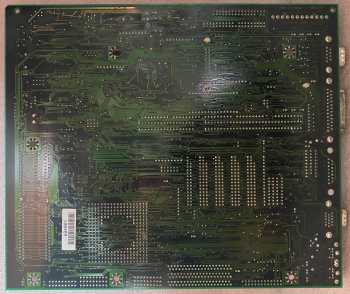

Image 1 of 7 (UK Tech Support)
Image 2 of 7 (Motherboard Continuum)
Image 3 of 7 (ThisOldTech)
Image 4 of 7 (Motherboard Continuum)
Image 5 of 7 (ThisOldTech)
Image 6 of 7 (Robert Dalquest)
Image 7 of 7 (Motherboard Continuum)
