MSI MS-6168 VER:2
Logs
chipChipset
cpuSocket
Slot 1 (Slot-242)
speedFSB speeds
66MHz100MHz
moboForm factor
MicroATX (max 244 x 244 mm)
dimDimensions
244 mm x 206 mm
ramMax VRAM size
16MB
chipCache
None/Integrated in the CPU
ramMax RAM size
512MB
ramRAM type
SDR UDIMM
pwrPSU connector
ATX 1.x (20-pin ATX)
tag Also known as
connI/O ports
1x
3.5mm Audio Combo
1x
Floppy interface
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
2x
Serial
1x
TV-Out
2x
USB 1.x
1x
VGA
cardExpansion slots
1x
16-bit ISA
3x
32-bit PCI
notes Notes

Can be found in certain Packard Bell computers, Video RAM can be 8 or 16 MB SGRAM

Last updated 2024-10-16T15:09:15Z
Board info score is 9.8/10
bios 7 BIOS files available

vendor AMI - 4 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
61-0530-001169-00101111-071595-440BX/ZX-1AAET006
Note
PB OEM
Core version
071595
BIOS version
Logs
POST string
61-0730-001169-00101111-071595-440BX/ZX-1440B000
Note
PB OEM
Core version
071595
BIOS version
Logs
POST string
61-0314-001169-00101111-071595-440BX/ZX-1AAET006
Note
PB OEM
Core version
071595
BIOS version
Logs
POST string
61-0511-001169-00101111-071595-440BX/ZX-1440B000
Note
PB OEM
Core version
071595
BIOS version
Logs

vendor Award - 3 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
11/17/2000-i440ZX-W977-2A69KM4NC-00
Note
Core version
4.51PG
BIOS version
Logs
POST string
10/20/1998-i440ZX-W977-2A69KM4NC-00
Note
Core version
4.51PG
BIOS version
Logs
POST string
10/20/1998-i440ZX-W977-2A69KM4NC-00
Note
Core version
4.51PG
BIOS version
Logs
drv 19 drivers available
Name
Version
OS support
Size
Filename
Name
Version
7.70
OS support
Windows 3.1x
Size
896.5KB
Filename
Name
Version
4.06.1154
OS support
Windows 9x Windows NT 4.0
Size
20.9MB
Filename
Name
Version
5.12.01.4107
OS support
Windows 2000 Windows 9x
Size
2.8MB
Filename
Name
Version
3.20.1008
OS support
Windows 2000 Windows 9x Windows XP
Size
Empty
Filename
Name
Version
3.3.0.2
OS support
Windows 9x
Size
569.7KB
Filename
Name
Version
3.02.0.0
OS support
Windows 9x
Size
577.8KB
Filename
Name
Version
3.40.1001
OS support
Windows 2000 Windows 9x Windows XP
Size
2.2MB
Filename
Name
Version
2.80
OS support
Windows 2000 Windows 9x
Size
1.5MB
Filename
Name
Version
2.80
OS support
Windows 2000 Windows 9x
Size
1.5MB
Filename
Name
Version
Alpha 65
OS support
Windows 2000 Windows XP
Size
3.7MB
Filename
Name
Version
Alpha 47
OS support
Windows 2000 Windows XP
Size
4MB
Filename
Name
Version
3.7B / 3.7D
OS support
MS-DOS NetWare Server 3 NetWare Server 4 OS/2 Warp 3.x Windows 3.1x Windows 9x Windows NT 3.5x
Size
1.6MB
Filename
Name
Version
1.08.05
OS support
Windows 2000 Windows XP
Size
6.6MB
Filename
Name
Version
1.07.00 Beta
OS support
Windows 9x
Size
2.1MB
Filename
Name
Version
1.07.00
OS support
Windows 9x
Size
8.5MB
Filename
Name
Version
1.05.00
OS support
Windows 9x
Size
10.4MB
Filename
Name
Version
1.04.00
OS support
Windows 9x
Size
6.7MB
Filename
Name
Version
1.04.00
OS support
Windows NT 4.0
Size
4.6MB
Filename
Name
Version
Empty
OS support
Windows 2000
Size
1.4MB
Filename
doc 2 board documents available
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2000-09
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2003-04
File
Logs
Chip
Release date
1999-03
File
Logs
Chip
Release date
2010-01
File
Logs
Family
Release date
File
Logs
Family
Release date
2002-02
File
Logs
Family
Release date
1998-01
File
Logs
Family
Release date
1998-01
File
Logs
Socket
Release date
File
Logs
Socket
Release date
1999-02
File
Logs
Socket
Release date
1997-05
File
Logs

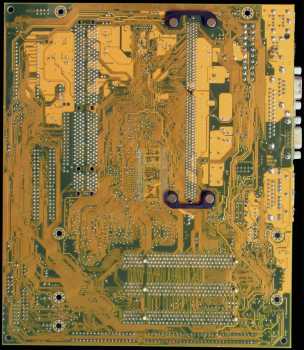

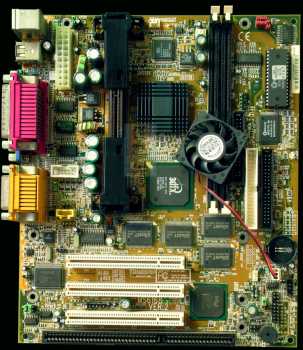

image1 Image 1 of 5 (Microhouse)
image2 Image 2 of 5 (Carlos S. M.)
image3 Image 3 of 5 (PCang)
image4 Image 4 of 5 (PCang)
image5 Image 5 of 5 (evasive)
