MSI KT6V-LSR
Chipset
Socket
FSB speeds 200 MHz266 MHz333 MHz400 MHz
Form factorATX (max 305 x 244 mm)
Dimensions295mm x 205mm
Cache
None/Integrated in the CPU
Max RAM size
2 GB
RAM type DDR UDIMM
PSU connector
I/O ports1x
3.5mm Audio Combo
1x
Floppy interface
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
1x
S/PDIF
2x
SATA I
1x
Serial
8x
USB 2.0
Expansion slots1x
1.5V AGP
5x
32-bit PCI
Last updated 2023-04-29T21:03:31Z
Board info score is 9.6/10
Chips
-> Chipset part
-> Audio
-> Network
-> Super I/O
CPU family support
8 BIOS files available
AMI - 8 entries
POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
63-1020-009999-00101111-040201-VIA_K7-KT600300
Note
Core version
070010
BIOS version
Logs
POST string
63-0827-009999-00101111-040201-VIA_K7-KT600300
Note
Core version
070010
BIOS version
Logs
POST string
63-0701-009999-00101111-040201-VIA_K7-KT600300
Note
Core version
070010
BIOS version
Logs
POST string
63-0511-009999-00101111-040201-VIA_K7-KT600300
Note
Core version
070010
BIOS version
Logs
POST string
63-0303-009999-00101111-040201-VIA_K7-KT600300
Note
Core version
070010
BIOS version
Logs
POST string
63-0113-009999-00101111-040201-VIA_K7-KT600300
Note
Core version
070010
BIOS version
Logs
POST string
63-1106-009999-00101111-040201-VIA_K7-KT600300
Note
Core version
070010
BIOS version
Logs
POST string
63-1015-009999-00101111-040201-VIA_K7-KT600300
Note
Core version
070010
BIOS version
Logs
7 drivers available
Name
Version
Arch
OS support
Size
Filename
Name
Version
A4.06
Arch
x86
OS support
Windows 2000
Windows XP/2k3
Size
17.9MB
Filename
Name
Version
5.70d
Arch
x86
OS support
Windows 2000
Windows 9x
Windows NT 3.5x
Windows NT 4.0
Windows XP/2k3
Size
3.9MB
Filename
Name
Version
5.40A
Arch
x86
, x64
OS support
Windows 2000
Windows 9x
Windows NT 4.0
Windows XP/2k3
Size
10.8MB
Filename
Name
Version
2.56
Arch
x86
OS support
Windows 2000
Windows 9x
Size
13.1MB
Filename
Name
Version
V5.50b
Arch
x86
OS support
Windows 2000
Windows NT 4.0
Windows Vista
Windows XP/2k3
Size
392.3KB
Filename
Version
Arch
OS support
Size
Filename
Version
Arch
OS support
Windows 2000
Windows 9x
Windows XP/2k3
Size
12.7MB
Filename
Version
Arch
OS support
Windows 2000
Windows 9x
Windows NT 4.0
Windows XP/2k3
Size
1.4MB
Filename
1 board document available
Release date
File
Logs
Chip
Release date
File
Logs

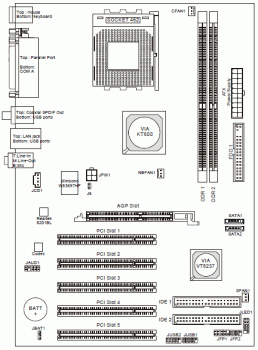

Image 1 of 4 (evasive)

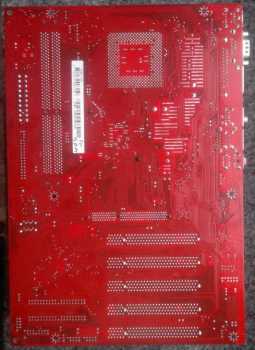

Image 2 of 4

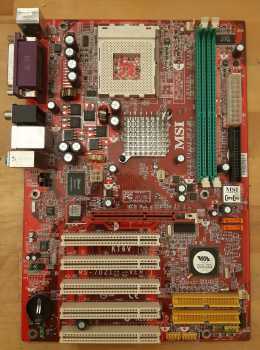

Image 3 of 4 (Carlos S. M.)
Image 4 of 4
