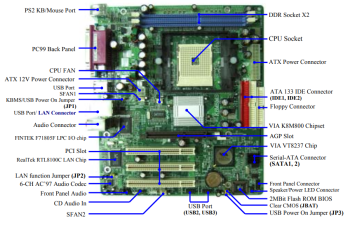

Jetway K8M8MS
chipChipset
cpuSocket
Socket 754 (mPGA754)
speedFSB speed
800MHz
moboForm factor
MicroATX (max 244 x 244 mm)
dimDimensions
244mm x 210mm
chipCache
None/Integrated in the CPU
ramMax RAM size
2GB
ramRAM type
DDR UDIMM
pwrPSU connector
12V P4 Connector (4-pin P4) ATX 1.x (20-pin ATX)
connI/O ports
1x
3.5mm Audio Combo
1x
Floppy interface
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
2x
SATA I
1x
Serial
8x
USB 2.0
1x
VGA
cardExpansion slots
1x
1.5V AGP
3x
32-bit PCI

Also known as:

Last updated 2024-03-27T10:17:48Z
Board info score is 9.8/10
chipChipset parts
VIA VT8237(R) VIA VT3108 (K8M800)
chipAudio chips
Realtek ALC655 (AC97)
chipNetwork chips
Realtek RTL8100C (PCI Fast Ethernet)
ramMax VRAM size
128MB
cpuCPU family support
19 files available

Vendor: Award [19 entries]

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
02/14/2007-K8M800-8237-6A7L1J19C-00
Note
Albatron OEM
Core version
6.00PG
BIOS version
Logs
POST string
03/15/2006-K8M800-8237-6A7L1J19C-00
Note
Albatron OEM
Core version
6.00PG
BIOS version
Logs
POST string
11/18/2005-K8M800-8237-6A7L1J19C-00
Note
Albatron OEM
Core version
6.00PG
BIOS version
Logs
POST string
10/04/2005-K8M800-8237-6A7L1J19C-00
Note
Albatron OEM
Core version
6.00PG
BIOS version
Logs
POST string
07/19/2005-K8M800-8237-6A7L1J19C-00
Note
Albatron OEM
Core version
6.00PG
BIOS version
Logs
POST string
06/13/2005-K8M800-8237-6A7L1J19C-00
Note
Albatron OEM
Core version
6.00PG
BIOS version
Logs
POST string
10/12/2005-K8M800-8237-6A7L1J19C-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
08/18/2005-K8M800-8237-6A7L1J19C-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
08/10/2005-K8M800-8237-6A7L1J19C-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
06/01/2005-K8M800-8237-6A7L1J19C-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
04/12/2005-K8M800-8237-6A7L1J19C-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
04/04/2005-K8M800-8237-6A7L1J19C-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
01/29/2007-K8M800-8237-6A7L1J19C-00
Note
R2 only (PCB 2.0)
Core version
6.00PG
BIOS version
Logs
POST string
03/23/2005-K8M800-8237-6A7L1J19C-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
03/09/2005-K8M800-8237-6A7L1J19C-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
01/03/2005-K8M800-8237-6A7L1J19C-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
12/15/2005-K8M800-8237-6A7L1J19C-00
Note
R2 only (PCB 2.0)
Core version
6.00PG
BIOS version
Logs
POST string
08/17/2005-K8M800-8237-6A7L1J19C-00
Note
R2 only (PCB 2.0)
Core version
6.00PG
BIOS version
Logs
POST string
01/30/2007-K8M800-8237-6A7L1J19C-00
Note
R2 VC only (PCB 2.0)
Core version
6.00PG
BIOS version
Logs
drv 3 known good drivers available
Name
Version
OS support
Size
Filename
Name
Version
5.24A
OS support
Windows 2000 Windows 9x Windows XP
Size
12.7MB
Filename
Name
Version
5.24A
OS support
Windows 2000 Windows 9x Windows XP
Size
12.7MB
Filename
Name
Version
4.56V
OS support
Windows 2000 Windows 9x Windows NT 4.0 Windows XP
Size
1.4MB
Filename
Name
Version
OS support
Size
Filename
Name
Version
5.70d
OS support
Windows 2000 Windows 9x Windows NT 3.5x Windows NT 4.0 Windows XP
Size
3.9MB
Filename
Name
Version
5.40A
OS support
Windows 2000 Windows 9x Windows NT 4.0 Windows XP
Size
10.8MB
Filename
Name
Version
16.01.22.01
OS support
Windows 9x
Size
5.7MB
Filename
Name
Version
A4.06
OS support
Windows 2000 Windows 9x Windows XP
Size
17.9MB
Filename
Name
Version
1.0
OS support
MS-DOS Windows 2000 Windows 9x Windows NT 4.0 Windows XP
Size
490.9KB
Filename
Name
Version
V5.00
OS support
MS-DOS Mac OS X NetWare Server 3 NetWare Server 4 Netware Client32 SCO Unix - OpenServer Windows 2000 Windows 3.1x Windows 9x Windows NT 3.5x Windows NT 4.0
Size
3.3MB
Filename
Name
Version
16.01.22.01
OS support
Windows 9x
Size
5.7MB
Filename
doc 3 board documents available
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2004-12-15
File
Logs
Chip
Release date
File
Logs
