IBM PS/2 MODEL 70 (8570) 386 20MHz (Type 2 Planar)
Logs
chipChipset
cpuSockets
PGA132 PGA68
speedFSB speed
20MHz
moboForm factor
OEM / Proprietary
dimDimensions
355mm x 240mm
chipCache
None/Integrated in the CPU
ramMax RAM size
6MB
ramRAM type
72-pin FPM
pwrPSU connector
OEM/Proprietary
maxcpuMulti CPU support
no
tag Also known as
connI/O ports
1x
Floppy interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
Serial
1x
VGA
cardExpansion slots
1x
16-bit MCA with AVE
2x
32-bit MCA with MME
notes Notes

Further info: https://www.ardent-tool.com/8570/Planar_T2.html

Last updated 2025-04-11T07:15:09Z
Board info score is 8.8/10
bios 1 BIOS file available

vendor IBM - 1 entry

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
Note
reference disk
Core version
BIOS version
Logs
drv No drivers available
doc 2 board documents available
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1984
File
Logs
Chip
Release date
1994-10
File
Logs

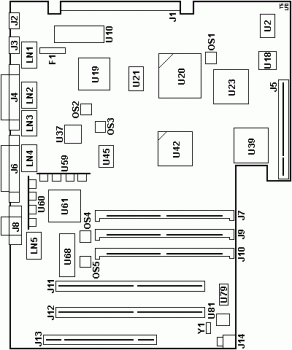

image1 Image 1 of 3 (Louis Ohland)
image2 Image 2 of 3 (UMMR)
image3 Image 3 of 3 (Microhouse)
