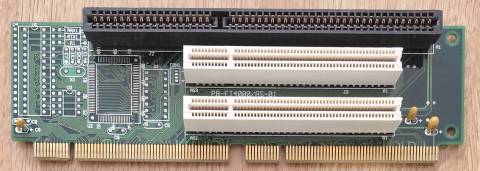

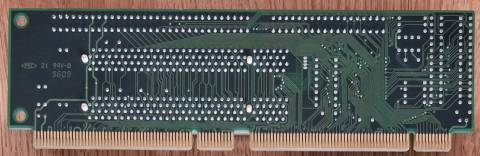

• Flytech PB-FT4550/B-01

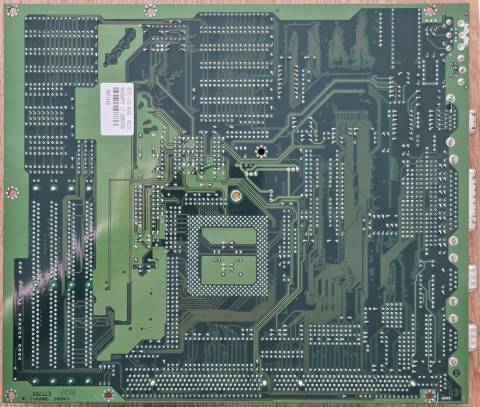

• Flytech FT-940822

• DALLAS RTC coin cell empty

The motherboard's Real-Time Clock (RTC) chip contains a coin cell that may have drained, causing the loss of CMOS settings. This can result in an inability to save settings, causing system instability or failure to boot. To fix this, the RTC chip can be replaced with an equivalent or repaired by cutting into it and soldering on a new external coin cell holder. Replacement guides are available at https://github.com/necroware/nwX287 or https://github.com/necroware/nw12887, depending on the actual chip used.

JP19+JP8 adjust the CPU clock speed 100 / 133 / 166 / 200 MHz

If the DALLAS is flat, floppy behaves erratic.

Does not start without the DALLAS module mounted
