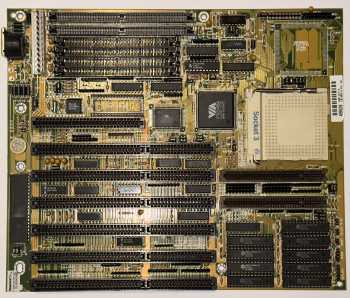

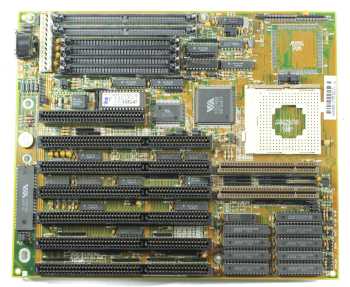

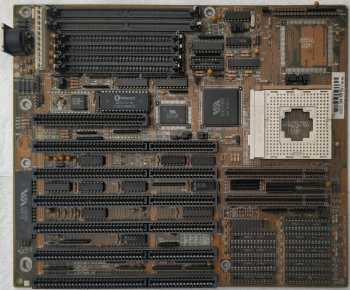

FIC 486-GVT-2
Logs
chipChipset
cpuSocket
speedFSB speeds
25MHz33MHz50MHz
moboForm factor
Baby AT (max 220 x 330 mm)
dimDimensions
218mm x 259mm
chipCache
64KB128KB256KB
ramMax RAM size
96MB
ramRAM types
30-pin SIMM72-pin FPM
pwrPSU connector
tag Also known as
connI/O ports
1x
AT Keyboard
1x
PS/2 mouse
cardExpansion slots
6x
16-bit ISA
2x
32-bit VLB
1x
8-bit ISA
notes Notes

BIOS 3.276GN1 shows flaky behavior when CPU is not a DX2-66. When using IDE auto-detect option in BIOS CMOS settings seem to get manlged. Also won't boot with Pentium Overdrive P24T.

Last updated 2025-04-15T17:46:41Z
Board info score is 9.6/10
chip Chips
cpufam CPU family support
bios 5 BIOS files available

vendor Award - 5 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
06/16/97-VT82C486A-214L2000-00
Note
beta BIOS (Y2K fix) + VGA BIOS
Core version
4.50
BIOS version
Logs
POST string
06/16/97-VT82C486A-214L2000-00
Note
beta BIOS (Y2K fix) NO VGA BIOS so fits 64k ROM chip
Core version
4.50
BIOS version
Logs
POST string
11/02/94-VT82C486A-214L2000-00
Note
Core version
4.50G
BIOS version
Logs
POST string
12/02/93-VT82C486A-214L2000-00
Note
Core version
4.50
BIOS version
Logs
POST string
GAL chip image (U19, GAL16V8B)
Note
Core version
BIOS version
Logs
drv No drivers available
doc 3 board documents available
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
