Chipset
Socket
FSB speeds
Form factor
Dimensions
Cache
Max RAM size
RAM type
PSU connector
I/O ports
Expansion slots
Notes
Apparently only works with Ericsson keyboard
To achieve full 640kByte of memory you need this:
- Memory in sockets: 128kByte

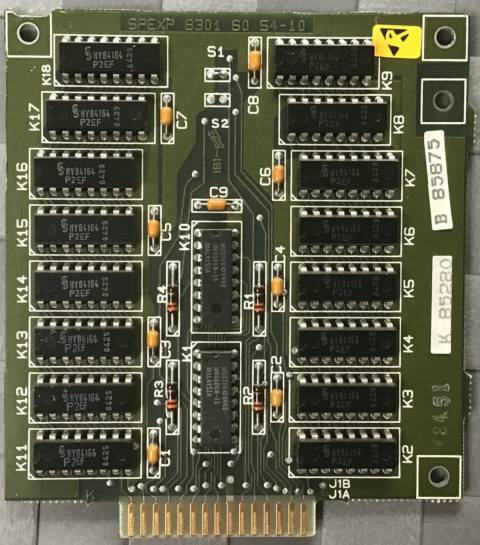

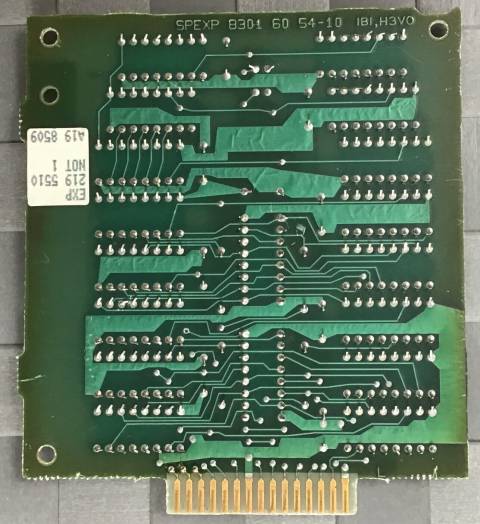

- Memory on card in special slot: 128kByte
- Memory in card on ISA slot: 384kByte
MDA/Hercules works out of the box. EGA/VGA card can be fitted (own BIOS) and works also out of the box. CGA works only the original IBM Card and Graphics Gremlin. If you have additional CGA-Cards which are conforming to work in this system - please report.
Keyboard seems to be XT, but has own protocol or/and wiring No other XT-Keyboard tested has worked.
Other BIOS like Sergey's Kiselev micro8088 BIOS (IBM PC/XT Version), 16k splitted on 2x 27C64 EPROMS works - but without keyboard. Other BIOS like XT Turbo BIOS or GLaBIOS is not tested yet - please report.
Chips
1 BIOS file available
Nokia - 1 entry
No drivers available
No board documents available
Image 1 of 5
Image 2 of 5
Image 3 of 5
Image 4 of 5
Image 5 of 5
