EPoX/ProNiX EP-4SDA5+
Logs
chipChipset
cpuSocket
Socket 478 (mPGA478)
speedFSB speeds
400MHz533MHz
moboForm factor
ATX (max 305 x 244 mm)
dimDimensions
305mm x 244mm
chipCache
None/Integrated in the CPU
ramMax RAM size
3GB
ramRAM type
DDR UDIMM
pwrPSU connector
ATX 1.x (20-pin ATX) ATX P4 connector 12v (4-pin P4)
connI/O ports
1x
3.5mm Audio Combo
2x
FireWire 400
1x
Floppy interface
1x
Gameport
4x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
1x
S/PDIF
2x
Serial
6x
USB 2.0
cardExpansion slots
1x
1.5V AGP
6x
32-bit PCI
notes Notes

Uses optional Realtek Ethernet controller.

Uses optional HPT372 RAID controller.

Uses optional FireWire controller.

Last updated 2023-10-31T12:29:28Z
Board info score is 9.4/10
bios 1 BIOS file available

vendor Award - 1 entry

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
10/28/2002-SiS-648-6A7I0PA9C-00
Note
SDA52A28.BIN
Core version
6.00PG
BIOS version
Logs
drv 6 drivers available
Name
Version
OS support
Size
Filename
Name
Version
2.351
OS support
Windows 2000 Windows 9x Windows NT 4.0 Windows XP
Size
250.8KB
Filename
Name
Version
2.0.1019
OS support
MS-DOS Windows 2000 Windows 9x Windows NT 4.0 Windows XP
Size
184.8KB
Filename
Name
Version
2.352.7.126
OS support
Windows Vista
Size
79.4KB
Filename
Name
Version
A4.06
OS support
Windows 2000 Windows 9x Windows XP
Size
17.9MB
Filename
Name
Version
1.21
OS support
Windows 2000 Windows 9x Windows XP
Size
Empty
Filename
Name
Version
2.04A
OS support
Windows 2000 Windows 9x Windows XP
Size
Empty
Filename
doc 1 board document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2002-10-25
File
Logs
Chip
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
2001-02
File
Logs
Family
Release date
File
Logs
Family
Release date
2002-11
File
Logs
Family
Release date
2002-11
File
Logs
Family
Release date
2004-02
File
Logs
Family
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
2001-08
File
Logs
Family
Release date
File
Logs
Family
Release date
2002-05
File
Logs
Family
Release date
File
Logs
Socket
Release date
File
Logs
Socket
Release date
2001-10
File
Logs
Socket
Release date
2002-05
File
Logs
Socket
Release date
2002-10
File
Logs
Socket
Release date
2001-08
File
Logs

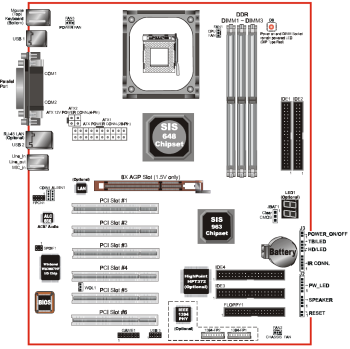

image1 Image 1 of 2
image2 Image 2 of 2
