Edom/WinTech MV035
Chipset
Socket
FSB speeds 25MHz33MHz40MHz50MHz
Form factorBaby AT (max 220 x 330 mm)
Dimensions250mm x 220mm
Cache
64KB128KB256KB512KB
Max RAM size
128MB
RAM types 30-pin SIMM72-pin FPM
PSU connector
Multi CPU supportno
Also known as
- DASH COMPUTER, INC. GREEN FUNCTION VL-BUS
- Lucky Star OPTI VL486
- Unknown 840522
I/O ports1x
AT Keyboard
Expansion slots8x
16-bit ISA
3x
32-bit VLB
Known issues
- Leaky Ni-Cd clock battery
The Ni-Cd battery may be leaking, risking damage to PCB layers & nearby components. Promptly remove the battery & clean corrosion/alkaline salts from the board. Use white vinegar to dissolve salts, but exercise caution as vinegar can corrode exposed metals. A thorough examination & repair may be needed. Replace battery with guide: https://github.com/wiretap-retro/Not-A-Varta
Last updated 2026-02-26T11:47:11Z
Board info score is 9.4/10
Chips
-> Chipset part
-> Human Interface
CPU family support
1 BIOS file available
Award - 1 entry
POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
Note
Core version
BIOS version
Logs
AMI - 1 entry
POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
40-P300-001256-00101111-121593-OPTi895
Note
Core version
121593
BIOS version
Logs
No drivers available
2 board documents available
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1995-11-30
File
Logs
Chip
Release date
1995-11-22
File
Logs
Chip
Release date
1994-07
File
Logs
Chip
Release date
1996-01
File
Logs
Family
Release date
File
Logs
Family
Release date
1996-03
File
Logs

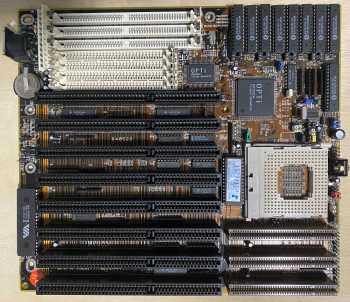

Image 1 of 4 (Microhouse)
Image 2 of 4 (andysarcade)
Image 3 of 4 (jesspatton)
Image 4 of 4 (jesspatton)
