ECS SC386SX
Logs
chipChipset
cpuSockets
PLCC68 BQFP100
speedFSB speeds
16MHz20MHz
moboForm factor
Baby AT (max 220 x 330 mm)
dimDimensions
330mm x 218mm
chipCache
None/Integrated in the CPU
ramMax RAM size
16MB
ramRAM type
30-pin SIMM
pwrPSU connector
AT (6-pin P8 + 6-pin P9)
tag Also known as
connI/O ports
1x
AT Keyboard
cardExpansion slots
6x
16-bit ISA
2x
8-bit ISA
Last updated 2025-10-18T16:14:58Z
Board info score is 9.8/10
chip Chips
-> Chipset part
CHIPS and Technologies 82C836
-> Human Interface
(multiple brand) 8042 (Keyboard Controller)
cpufam CPU family support
bios 1 BIOS file available

vendor AMI - 2 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
30-0200-D01131-00101111-050591-SCAT3.04
Note
Core version
050591
BIOS version
Logs
POST string
30-0200-D01131-00101111-050591-SCAT3
Note
Core version
050591
BIOS version
Logs
drv 1 driver available
Name
Version
OS support
Size
Filename
Name
Version
1.3.0
OS support
MS-DOS
Size
13.3KB
Filename
doc 2 board documents available
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1995-11-30
File
Logs
Chip
Release date
1995-11-22
File
Logs
Chip
Release date
1994-07
File
Logs
Chip
Release date
1996-01
File
Logs

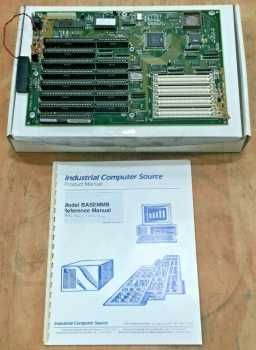

image1 Image 1 of 4 (Microhouse)

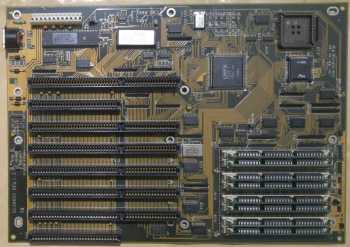

image2 Image 2 of 4

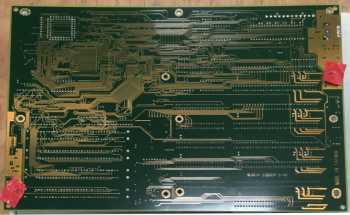

image3 Image 3 of 4
image4 Image 4 of 4

Disclaimer

The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
