DTK PPM-1660C
Chipset
Sockets
FSB speeds 16MHz20MHz
Form factorLPX (max 229 x 330 mm)
Dimensions333mm x 222mm
Cache
None/Integrated in the CPU
Max RAM size
5MB
RAM type 30-pin SIMM
PSU connector
I/O ports1x
AT Keyboard
1x
Floppy interface
1x
IDE interface
1x
PS/2 mouse
1x
Parallel
2x
Serial
Expansion slots3x
16-bit ISA
2x
8-bit ISA
Known issues
- Leaky Ni-Cd clock battery
The Ni-Cd battery may be leaking, risking damage to PCB layers & nearby components. Promptly remove the battery & clean corrosion/alkaline salts from the board. Use white vinegar to dissolve salts, but exercise caution as vinegar can corrode exposed metals. A thorough examination & repair may be needed. Replace battery with guide: https://github.com/wiretap-retro/Not-A-Varta
Last updated 2025-02-13T13:17:51Z
Board info score is 9.2/10
Chips
-
Floppy ctrl.
-
Human Interface
-
Signal transmitter/receiver
5 BIOS files available
Phoenix - 5 entries
POST string
Note
Core Ver.
BIOS Ver.
Logs
AMI - 1 entry
POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
Note
Core version
BIOS version
Logs
1 driver available
Name
Version
OS support
Size
Filename
2 board documents available
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1989-08-29
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1995-11-30
File
Logs
Chip
Release date
1990
File
Logs
Chip
Release date
1996-08-09
File
Logs
Chip
Release date
1996-05-15
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1995-11-22
File
Logs
Chip
Release date
1994-07
File
Logs

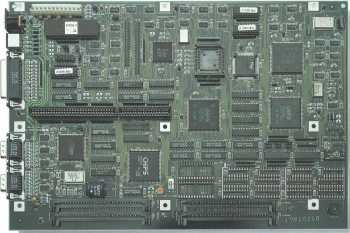

Image 1 of 5 (Microhouse)

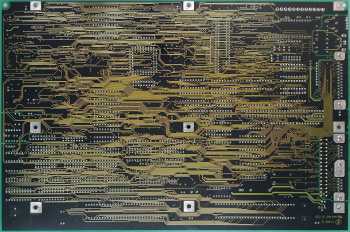

Image 2 of 5 (TheRetroChannel)
Image 3 of 5 (TheRetroChannel)
Image 4 of 5 (TheRetroChannel)
Image 5 of 5
