DFI G586IPC (rev. D+)
Chipset
Socket
FSB speeds 50MHz60MHz66MHz
Form factorBaby AT (max 220 x 330 mm)
Dimensions250mm x 220mm
Cache
256KB512KB
Max RAM size
256MB
RAM types 72-pin FPM72-pin EDO
PSU connector
I/O ports1x
AT Keyboard
1x
Floppy interface
1x
Gameport
1x
IDE interface
1x
PS/2 mouse
1x
Parallel
2x
Serial
2x
USB 1.x
Expansion slots4x
16-bit ISA
4x
32-bit PCI
Known issues
- DALLAS RTC coin cell empty
The motherboard's Real-Time Clock (RTC) chip contains a coin cell that may have drained, causing the loss of CMOS settings. This can result in an inability to save settings, causing system instability or failure to boot. To fix this, the RTC chip can be replaced with an equivalent or repaired by cutting into it and soldering on a new external coin cell holder. Replacement guides are available at https://github.com/necroware/nwX287 or https://github.com/necroware/nw12887, depending on the actual chip used.
Last updated 2024-12-08T14:12:18Z
Board info score is 9.6/10
Chips
-
Chipset part
-
Clock Synth / PLL
-
Human Interface
-
Real-Time Clock
-
Signal transmitter/receiver
-
Super I/O
8 BIOS files available
Award - 8 entries
POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
07/31/98-i430HX-2A59FD4HC-00
Note
latest BIOS, 32GB fix
Core version
4.51PG
BIOS version
Logs
POST string
05/09/97-i430HX-2A59FD4HC-00
Note
rev DA or higher (K6 166 support added)
Core version
4.51PG
BIOS version
Logs
POST string
05/09/97-i430HX-2A59FD4GC-00
Note
rev DA or higher (K6 166 support added ?) (512K cache)
Core version
4.51PG
BIOS version
Logs
POST string
03/07/97-i430HX-2A59FD4HC-00
Note
rev C and D (K5 166 support)
Core version
4.51PG
BIOS version
Logs
POST string
03/07/97-i430HX-2A59FD4GC-00
Note
rev C and D (K5 166 support) 512K cache
Core version
4.51PG
BIOS version
Logs
POST string
11/13/96-i430HX-2A59FD4HC-00
Note
rev D
Core version
4.51PG
BIOS version
Logs
POST string
11/13/96-i430HX-512K-2A59FD4GC-00
Note
rev D or higher, 512K cache
Core version
4.51PG
BIOS version
Logs
5 drivers available
Name
Version
OS support
Size
Filename
Name
Version
3.00
OS support
OS/2 Warp 3.x
Windows NT 3.5x
Windows NT 4.0
Size
1.2MB
Filename
Name
Version
3.00
OS support
OS/2 Warp 3.x
Windows NT 3.5x
Windows NT 4.0
Size
1.2MB
Filename
Name
Version
3.3.0.2
OS support
Windows 9x
Size
569.7KB
Filename
Name
Version
3.02.0.0
OS support
Windows 9x
Size
577.8KB
Filename
Name
Version
3.7B / 3.7D
OS support
MS-DOS
NetWare Server 3
NetWare Server 4
OS/2 Warp 3.x
Windows 3.1x
Windows 9x
Windows NT 3.5x
Size
1.6MB
Filename
2 board documents available
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2009-10
File
Logs
Chip
Release date
2013-04
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2004-11
File
Logs
Chip
Release date
2002-10-20
File
Logs
Chip
Release date
1995-11-30
File
Logs
Chip
Release date
2000-03-16
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2006-01
File
Logs
Chip
Release date
2002-10-20
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1995-11-22
File
Logs
Chip
Release date
1994-07
File
Logs
Family
Release date
File
Logs
Family
Release date
2000-09
File
Logs
Family
Release date
1999-12
File
Logs
Family
Release date
2000-04
File
Logs
Family
Release date
2000-11
File
Logs
Family
Release date
1997-06
File
Logs
Family
Release date
1997-08
File
Logs

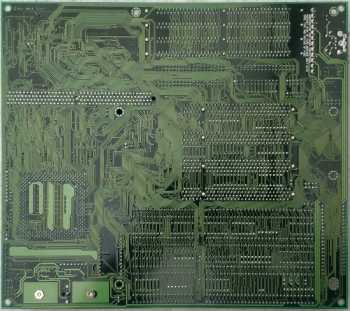

Image 1 of 4 (Microhouse)

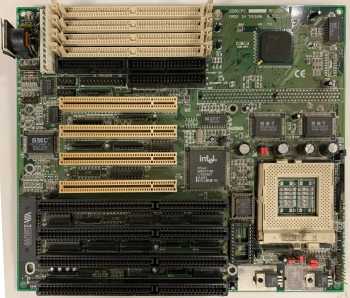

Image 2 of 4 (deksor)
Image 3 of 4 (mtgmackid)
Image 4 of 4 (deksor)
