Compaq PROLINEA MT
Chipset
Socket
FSB speeds 25MHz33MHz50MHz
Form factorOEM / Proprietary
Dimensions330mm x 218mm
Max RAM size
RAM type
PSU connector
I/O ports1x
Floppy interface
1x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
Serial
Expansion slots5x
16-bit ISA
Notes:
The 003422 revision seems to be a bit faster in benchmarks
First memory module MUST be 4MB as well
Maximum harddisk size is 2GB. Cannot be disabled for usage with XT-IDE!
Compaq Windows Diagnostics expose more settings than the DOS version on this board.
L2 cache module is proprietary, part number 197050-001 (128kB size, no others available).
The original bios is an OTP chip that can be replaced with a 49F010
Last updated 2024-02-19T00:08:23Z
Board info score is 9/10
Chipset parts
Video chipsMiscellaneous chipsSuper I/O chips
CPU family support
No drivers available
1 board document available
Release date
File
Logs
Chip
Release date
File
Logs
Family
Release date
File
Logs

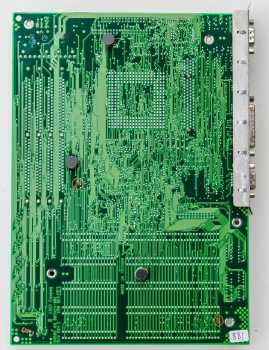

Image 1 of 9 (Microhouse)
Image 2 of 9 (Motherboard Continuum)
Image 3 of 9
Image 4 of 9 (Kopeć/kopeckop)
Image 5 of 9 (Motherboard Continuum)
Image 6 of 9 (Kopeć/kopeckop)
Image 7 of 9 (Motherboard Continuum)
Image 8 of 9 (Kopeć/kopeckop)
Image 9 of 9 (Kopeć/kopeckop)
