ASUS VL/I-486SV2GX4 Rev 2.0
Chipset
Socket
FSB speeds 20MHz25MHz33MHz40MHz50MHz
Form factorBaby AT (max 220 x 330 mm)
Dimensions220mm x 257mm
Cache
128KB256KB512KB1MB
Max RAM size
64MB
RAM type 72-pin FPM
PSU connector
I/O ports1x
AT Keyboard
1x
PS/2 mouse
Expansion slots7x
16-bit ISA
2x
32-bit VLB
Notes
The BIOS update (SV2G4fix.bin) fixes an issue from the latest BIOS (SV2G4021) in which the system does not properly set register 72h to TAG mode 7+1 when using write-back L2 cache. Without this, write back scores are worse than write through scores. After the BIOS fix, L2 mode write-back cache should be slightly faster than L2 write-through mode.
Last updated 2026-02-11T20:20:21Z
Board info score is 9.4/10
Chips
-> Chipset part
-> Human Interface
CPU family support
11 BIOS files available
Award - 10 entries
POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
11/17/97-SIS-85C471-I486SV2GC-00
Note
Rev 1.7
Core version
4.51G
BIOS version
Logs
POST string
11/03/95-SIS-85C471-I486SV2G-00
Note
Rev 2.0, 2.1
Core version
4.50G
BIOS version
Logs
POST string
11/19/97-SIS-85C471-I486SV2GC-00
Note
BETA
Core version
4.51G
BIOS version
Logs
POST string
11/19/97-SIS-85C471-I486SV2GC-00
Note
modded, write-back L2 fix
Core version
4.51G
BIOS version
Logs
POST string
08/22/95-SIS-85C471-I486SV2G-00
Note
Rev 2.0, 2.1
Core version
4.50G
BIOS version
Logs
POST string
04/26/94-SIS-85C471-I486SV2G-00
Note
Dumped, came on Rev 1.7
Core version
4.50G
BIOS version
Logs
Mr. BIOS - 1 entry
POST string
Note
Core Ver.
BIOS Ver.
Logs
No drivers available
6 board documents available
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1995-11-30
File
Logs
Chip
Release date
1995-11-22
File
Logs
Chip
Release date
1994-07
File
Logs
Chip
Release date
1996-01
File
Logs
Family
Release date
File
Logs
Family
Release date
1996-03
File
Logs

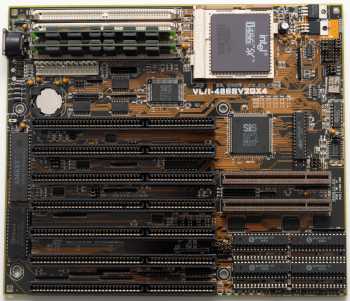

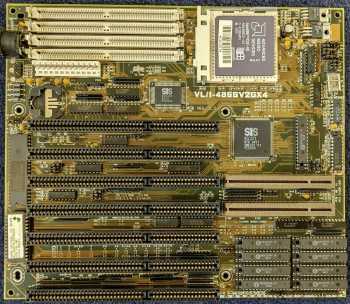

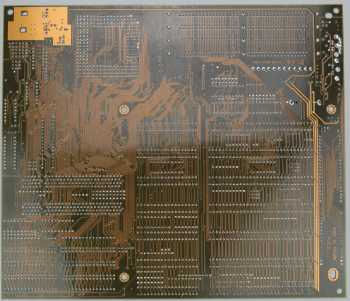

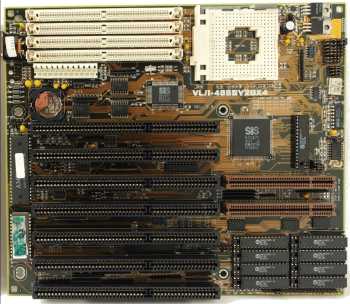

Image 1 of 10 (Microhouse)
Image 2 of 10 (MMaximus)
Image 3 of 10 (Clous)
Image 4 of 10 (dataino.it)
Image 5 of 10 (chrisNova777)
Image 6 of 10 (ChrisR3tro)
Image 7 of 10 (ChrisR3tro)
Image 8 of 10 (Clous)
Image 9 of 10 (dataino.it)
Image 10 of 10 (ChrisR3tro)
