ABC COMPUTER COMPANY A3286 / A3886-01 V3.0
Logs
chipChipset
cpuSockets
DIP40 PLCC68
speedFSB speed
20MHz
moboForm factor
Baby AT (max 220 x 330 mm)
dimDimensions
219mm x 195mm
chipCache
None/Integrated in the CPU
ramMax RAM size
20MB
ramRAM type
30-pin SIPP
pwrPSU connector
AT (6-pin P8 + 6-pin P9)
maxcpuMulti CPU support
no
connI/O ports
1x
AT Keyboard
cardExpansion slots
5x
16-bit ISA
1x
8-bit ISA
wrench Known issues
  • Leaky Ni-Cd clock battery

The Ni-Cd battery may be leaking, risking damage to PCB layers & nearby components. Promptly remove the battery & clean corrosion/alkaline salts from the board. Use white vinegar to dissolve salts, but exercise caution as vinegar can corrode exposed metals. A thorough examination & repair may be needed. Replace battery with guide: https://github.com/wiretap-retro/Not-A-Varta

Last updated 2024-12-08T08:44:21Z
Board info score is 8.6/10
bios 1 BIOS file available

vendor AMI - 1 entry

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
D342-5004-071590
Note
Core version
040990
BIOS version
Logs
drv 1 driver available
Name
Version
OS support
Size
Filename
Name
Version
r02
OS support
MS-DOS
Size
6.4KB
Filename
doc No board documents available
Chip
Release date
File
Logs
Chip
Release date
1990
File
Logs
Chip
Release date
1990
File
Logs
Chip
Release date
1995-11-30
File
Logs
Chip
Release date
1995-11-22
File
Logs
Chip
Release date
1994-07
File
Logs

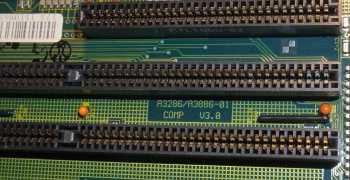

image1 Image 1 of 3 (wafffe)
image2 Image 2 of 3 (wafffe)
image3 Image 3 of 3 (wafffe)
