Pine Technology AI-1078E
Logs
typeType
Floppy controller Multi I/O IDE controller
interfaceInterface
signalSignaling
16-bit ISA
dimSlot height
1
datePCI ID
Empty
chip Chips and specs
-> Signal transmitter/receiver
Winbond W83758F (I/O coupler)
-> Super I/O
Winbond W83787IF
MTL
Data Bus 16-bit ISA
Card Size Half-length, half-height card
Card Type Controller card
I/O Options Floppy drive interface, game port, IDE interface, parallel port, serial ports (2)
Hard Drives supported Two IDE (AT) drives
Floppy drives supported Two 360KB, 720KB, 1.2MB, or 1.44MB drives
portintI/O ports
1x
  • 2x17 2.54mm pin header
1x
  • 2x8 2.54mm pin header
1x
  • 2x20 2.54mm pin header
1x
  • DB-25
1x
  • DE-9
1x
  • 2x5 2.54mm pin header
powerPower connectors
Empty
Last updated 2024-09-13T21:43:28Z
biosc No BIOS files available
drv No drivers available
doc 2 card documents available
Release date
File
Logs
Release date
1999
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1994-11
File
Logs
Chip
Release date
File
Logs

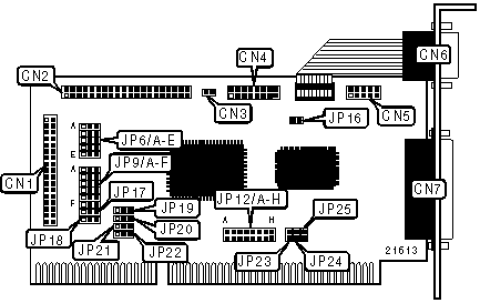

image1 Image 1 of 3 (Microhouse)
image2 Image 2 of 3 (Ian Hamilton)
image3 Image 3 of 3 (Ian Hamilton)
