[Unknown] CPU-3216SX
Logs
chipChipset
cpuSockets
PLCC68 PQFP100
speedFSB speed
16MHz
moboForm factor
Baby AT (max 220 x 330 mm)
dimDimensions
333mm x 220mm
chipCache
None/Integrated in the CPU
ramMax RAM size
8MB
ramRAM type
30-pin SIMM
pwrPSU connector
AT (6-pin P8 + 6-pin P9)
connI/O ports
1x
AT Keyboard
cardExpansion slots
6x
16-bit ISA
2x
8-bit ISA
wrench Known issues
  • Leaky Ni-Cd clock battery

The Ni-Cd battery may be leaking, risking damage to PCB layers & nearby components. Promptly remove the battery & clean corrosion/alkaline salts from the board. Use white vinegar to dissolve salts, but exercise caution as vinegar can corrode exposed metals. A thorough examination & repair may be needed. Replace battery with guide: https://github.com/wiretap-retro/Not-A-Varta

Last updated 2025-02-26T19:41:41Z
Board info score is 8.6/10
bios 1 BIOS file available

vendor Phoenix - 1 entry

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
Note
Core version
BIOS version
Logs

vendor Award - 1 entry

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
386SX-16 Modular BIOS v3.10 #408D9-9
Note
Core version
3.10
BIOS version
Logs
drv No drivers available
doc 1 board document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1989-11
File
Logs

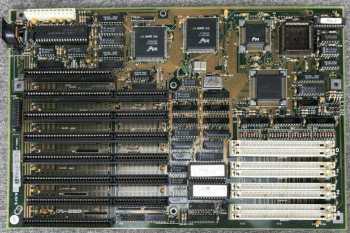

image1 Image 1 of 5 (Microhouse)
image2 Image 2 of 5
image3 Image 3 of 5 (VeryVon)
image4 Image 4 of 5 (VeryVon)
image5 Image 5 of 5
