Unicorn ENDAT-386R
Logs
chipChipset
Empty
cpuSockets
PGA132 PGA121
speedFSB speeds
6MHz8MHz10MHz12.5MHz16MHz20MHz
moboForm factor
Baby AT (max 220 x 330 mm)
dimDimensions
Empty
chipCache
None/Integrated in the CPU
ramMax RAM size
10MB(2MB onboard, 8MB on card)
ramRAM type
Empty
pwrPSU connector
AT (6-pin P8 + 6-pin P9)
maxcpuMulti CPU support
no
connI/O ports
1x
AT Keyboard
cardExpansion slots
5x
16-bit ISA
3x
8-bit ISA
wrench Known issues
  • Leaky Ni-Cd clock battery

The Ni-Cd battery may be leaking, risking damage to PCB layers & nearby components. Promptly remove the battery & clean corrosion/alkaline salts from the board. Use white vinegar to dissolve salts, but exercise caution as vinegar can corrode exposed metals. A thorough examination & repair may be needed. Replace battery with guide: https://github.com/wiretap-retro/Not-A-Varta

Last updated 2023-09-04T20:14:08Z
Board info score is 5.4/10
chip Chips
cpufam CPU family support
bios 0 BIOS files available

vendor Phoenix - 1 entry

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
Note
Core version
BIOS version
Logs
drv No drivers available
doc No board documents available

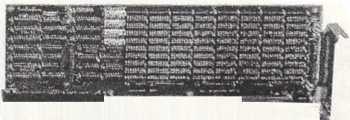

image1 Image 1 of 2
image2 Image 2 of 2

Disclaimer

The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
