Unicorn ENDAT-286xx REV. 5C
Logs
chipChipset
cpuSockets
DIP40 PLCC68
speedFSB speed
16 MHz
moboForm factor
Baby AT (max 220 x 330 mm)
dimDimensions
220mm x 220mm
chipCache
None/Integrated in the CPU
ramMax RAM size
4 MB
ramRAM types
30-pin SIPPDIP-20 (4bit)
pwrPSU connector
AT (6-pin P8 + 6-pin P9)
tag Also known as
connI/O ports
1x
AT Keyboard
cardExpansion slots
5x
16-bit ISA
2x
8-bit ISA
Last updated 2023-11-19T20:13:44Z
Board info score is 7.5/10
chip Chips
-> Chipset part
Headland HT12
cpufam CPU family support
bios 1 BIOS file available

vendor Microtec - 1 entry

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
Note
Core version
V 1.3
BIOS version
Logs
drv 1 driver available
Name
Version
Arch
OS support
Size
Filename
Name
Version
3.01
Arch
OS support
MS-DOS
Size
56.4KB
Filename
doc No board documents available
Chip
Release date
File
Logs
Chip
Release date
File
Logs

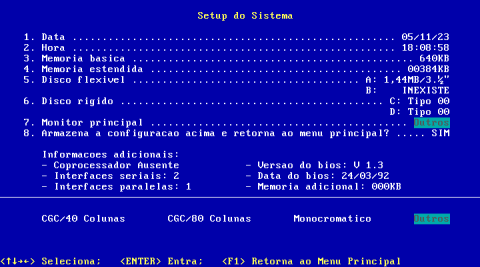

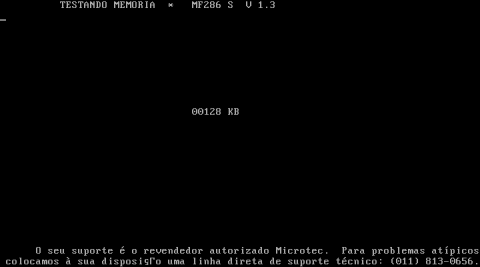

image1 Image 1 of 3 (Datassette)
image2 Image 2 of 3
image3 Image 3 of 3

Disclaimer

The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
