Tyan THUNDER N6650W S2915-E series
Chipset
Socket
FSB speeds 1000MHz1800MHz2000MHz2200MHz2400MHz
Form factorSSI EEB (max 305 × 330 mm)
Dimensions305 mm x 330 mm
Cache
None/Integrated in the CPU
Max RAM size
32GB(per CPU, 64GB total)
RAM type DDR2 RDIMM ECC
PSU connector
Multi CPU supportyes (2 CPUs)
I/O ports1x
3.5mm Audio Combo
2x
FireWire 400
1x
Floppy interface
1x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
2x
RJ-45 LAN
1x
S/PDIF
8x
SAS-1 (3GBit)
6x
SATA II
1x
Serial
10x
USB 2.0
Expansion slots1x
32-bit PCI
2x
64-bit PCI-X
2x
PCIe x16
2x
PCIe x16 @ x8
Known issues
- Server Board - requires airflow over VRM for safe operation
Adequate airflow across the VRM is necessary for stable and secure operation of this server motherboard.
- DRAM Support depends on CPU Used
The range of supported DRAM modules varies depending on the specific CPU installed.
Last updated 2024-08-02T21:37:09Z
Board info score is 8.8/10
Chips
-
Chipset part
-
Bridge Interface
-
FireWire ctrl.
-
SAS ctrl.
-
Super I/O
10 BIOS files available
Phoenix - 10 entries
POST string
Note
Core Ver.
BIOS Ver.
Logs
6 drivers available
Name
Version
OS support
Size
Filename
Name
Version
R2.74
OS support
Windows 2000
Windows 7
Windows Vista
Windows XP
Size
30.7MB
Filename
Name
Version
15.23
OS support
Windows XP
Size
50.9MB
Filename
Name
Version
6.08
OS support
Windows 7
Windows Vista
Windows XP
Size
71.7MB
Filename
Name
Version
1.25.10.00
OS support
Windows Vista
Windows XP
Size
2.2MB
Filename
4 board documents available
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2008-04-15
File
Logs
Chip
Release date
2005-08-25
File
Logs
Chip
Release date
2001-12
File
Logs
Chip
Release date
2006-06-02
File
Logs

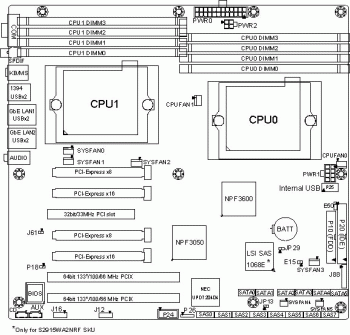

Image 1 of 2 (evasive)
Image 2 of 2
