Taiwan Commate / Commell LV-673L
Chipset
Socket
FSB speed 400MHz
Form factorMini ITX (max 170 x 170 mm)
Dimensions170mm x 170mm
Max VRAM size128MB
Cache
None/Integrated in the CPU
Max RAM size
2GB
RAM type DDR2 UDIMM
PSU connector
Also known as
- Taiwan Commate / Commell LV-673LNS

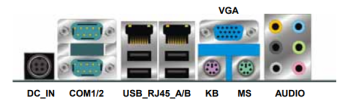

I/O ports1x
3.5mm Audio Combo
1x
CF Card Slot
1x
Floppy interface
1x
GPIO
1x
IDE interface
1x
IrDA
1x
LVDS
1x
PS/2 keyboard
1x
PS/2 mouse
2x
RJ-45 LAN
1x
S/PDIF
2x
SATA I
4x
Serial
6x
USB 2.0
1x
VGA
Expansion slots1x
32-bit PCMCIA
1x
32-bit mini-PCI
1x
PCIe x16
Notes
Embedded Celeron M 600Mhz
LV-673L (PCMCIA, CF Socket)
LV-673LNS (no PCMCIA, no CF Socket)
Last updated 2023-04-26T15:59:48Z
Board info score is 8.9/10
Chips
-
Chipset part
-
Bridge Interface
-
Super I/O
CPU family support
1 BIOS file available
Award - 1 entry
POST string
Note
Core Ver.
BIOS Ver.
Logs
3 drivers available
Name
Version
OS support
Size
Filename
Name
Version
14.25.50
OS support
Windows 2000
Windows XP
Size
Empty
Filename
Name
Version
11.45.4.3
OS support
Windows 7
Windows 8.x
Windows Vista
Windows XP
Size
1.8MB
Filename
Name
Version
R2.74
OS support
Windows 2000
Windows 7
Windows Vista
Windows XP
Size
30.7MB
Filename
3 board documents available
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2005-09-01
File
Logs
Chip
Release date
File
Logs
Image 1 of 2
Image 2 of 2
