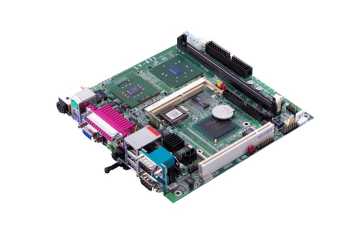

Taiwan Commate / Commell LV-671Z
Logs
chipChipset
cpuSocket
FCBGA479 (BGA479)
speedFSB speed
400MHz
moboForm factor
Mini ITX (max 170 x 170 mm)
dimDimensions
170mm x 170mm
ramMax VRAM size
64MB
chipCache
None/Integrated in the CPU
ramMax RAM size
1GB
ramRAM types
DDR UDIMMDDR UDIMM ECC
pwrPSU connector
DC Jack (12V) ATX P4 connector 12v (4-pin P4)
tag Also known as

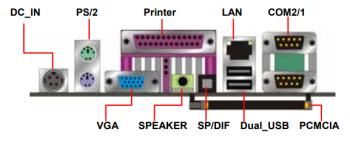

connI/O ports
1x
3.5mm Line-Out
1x
CF Card Slot
1x
Floppy interface
1x
GPIO
2x
IDE interface
1x
IrDA
1x
LVDS
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
1x
S/PDIF
2x
Serial
6x
USB 2.0
1x
VGA
cardExpansion slots
1x
32-bit PCI
1x
32-bit PCMCIA
1x
32-bit mini-PCI
1x
Mini-AGP
notes Notes

LV-671MPPM11 (Pentium M 1.1Ghz, PCMCIA, CF, Mini-PCI)

LV-671MAPM11 (Pentium M 1.1Ghz, PCMCIA, CF, Mini-AGP)

LV-671MPCM6 (Celeron M 600Mhz, PCMCIA, CF, Mini-PCI)

LV-671MACM6 (Celeron M 600Mhz, PCMCIA, CF, Mini-AGP)

LV-671NSMPCM6 (Celeron M 600Mhz, no PCMCIA, no CF, Mini-PCI)

LV-671NSMACM6 (Celeron M 600Mhz, no PCMCIA, no CF, Mini-AGP)

LV-671ZMP (Same as LV-671MPCM6)

LV-671ZMA (Same as LV-671MACM6)

LV-671ZNSMP (Same as LV-671NSMPCM6)

LV-671ZNSMA (Same as LV-671NSMACM6)

Last updated 2023-04-27T19:18:09Z
Board info score is 9.6/10
bios 1 BIOS file available

vendor Award - 1 entry

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
12/19/2006-i852-W83627HF-6A69YTPAC-00
Note
Core version
6.00PG
BIOS version
Logs
drv 18 drivers available
Name
Version
OS support
Size
Filename
Name
Version
14.17.0.4396
OS support
Windows 2000 Windows XP
Size
Empty
Filename
Name
Version
4.14.10.3732
OS support
Windows 9x
Size
Empty
Filename
Name
Version
4.03.1381.3732
OS support
Windows NT 4.0
Size
Empty
Filename
Name
Version
14.7.0.3889
OS support
Windows 2000 Windows XP
Size
Empty
Filename
Name
Version
9.1.2.1007
OS support
Windows 2000 Windows 7 Windows Vista Windows XP
Size
2.4MB
Filename
Name
Version
2.11.15
OS support
Windows 2000 Windows XP
Size
1.9MB
Filename
Name
Version
6.2
OS support
Linux MS-DOS NetWare Server 3 NetWare Server 4 Netware Client32 OS/2 2.x Windows 2000 Windows 9x Windows NT 4.0
Size
64.3MB
Filename
Name
Version
2003
OS support
MS-DOS OS/2 2.x
Size
554.8KB
Filename
Name
Version
2003
OS support
Windows 2000
Size
12.3MB
Filename
Name
Version
2003
OS support
Windows 9x
Size
1.4MB
Filename
Name
Version
2003
OS support
Windows 9x
Size
8.7MB
Filename
Name
Version
2003
OS support
Windows 9x
Size
1.5MB
Filename
Name
Version
2003
OS support
Windows 9x
Size
8.9MB
Filename
Name
Version
2003
OS support
Windows NT 4.0
Size
7.6MB
Filename
Name
Version
2.11.15.0
OS support
Windows 2000 Windows XP
Size
3.4MB
Filename
Name
Version
3.40.1001
OS support
Windows 2000 Windows 9x Windows XP
Size
2.2MB
Filename
Name
Version
11.1
OS support
MS-DOS Windows 2000 Windows 9x Windows XP
Size
36.4MB
Filename
Name
Version
A4.06
OS support
Windows 2000 Windows 9x Windows XP
Size
17.9MB
Filename
image1 Image 1 of 4
image2 Image 2 of 4
image3 Image 3 of 4
image4 Image 4 of 4
