Taiwan Commate / Commell LV-650
Logs
chipChipset
cpuSocket
BGA352
speedFSB speed
33 MHz
moboForm factor
Mini ITX (max 170 x 170 mm)
dimDimensions
170mm x 170mm
ramMax VRAM size
4 MB
chipCache
None/Integrated in the CPU
ramMax RAM size
256 MB(LV-650)320 MB(LV-650-64)384 MB(LV-650-128)
ramRAM type
SDR UDIMM
pwrPSU connector
ATX P4 connector 12v (4-pin P4)
tag Also known as
connI/O ports
1x
3.5mm Line-Out
1x
CF Card Slot
1x
Floppy interface
1x
GPIO
2x
IDE interface
1x
IrDA
1x
LVDS
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
2x
RJ-45 LAN
2x
Serial
2x
USB 1.x
1x
VGA
cardExpansion slots
1x
16-bit ISA
notes Notes

Onboard optional 64MB or 128MB SDRAM and one 168-pin DIMM socket supports additional 256 MB SDRAM.

Expansive Slots: 1 x ISA Slot , PC/104 Connector.

LV-650 (AMD GX1-300 MHz CPU, 0MB SDRAM on board)

LV-650-64 (AMD GX1-300 MHz CPU, 64MB SDRAM on board)

LV-650-128 (AMD GX1-300 MHz CPU, 128MB SDRAM on board)

Last updated 2025-05-29T19:51:18Z
Board info score is 6.5/10
bios 1 BIOS file available

vendor Award - 1 entry

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
Note
Core version
BIOS version
1.0
Logs
drv 4 drivers available
Name
Version
Arch
OS support
Size
Filename
Name
Version
V5.00
Arch
x86 , PPC
OS support
MS-DOS Mac OS X NetWare Server 3 NetWare Server 4 Netware Client32 SCO Unix - OpenServer Windows 2000 Windows 3.1x Windows 9x Windows NT 3.5x Windows NT 4.0
Size
3.3MB
Filename
Name
Version
1.0
Arch
OS support
MS-DOS Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Size
490.9KB
Filename
Version
Arch
OS support
Size
Filename
Version
Arch
x86
OS support
Windows 2000 Windows XP/2k3
Size
17.9MB
Filename
Version
Arch
x86
OS support
Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Size
14.5MB
Filename
doc No board documents available
Chip
Release date
File
Logs
Chip
Release date
2001-11-09
File
Logs

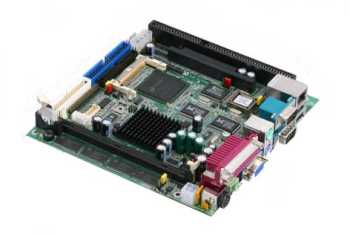

image1 Image 1 of 1 (Taiwan Commate / Commell)
