SuperTek ST-3WT
Logs
Chipset
Socket
FSB speed 33MHz
Form factorOEM / Proprietary
DimensionsEmpty
Max VRAM size8MB
Cache
None/Integrated in the CPU
Max RAM size
Empty
RAM type SDR UDIMM
PSU connector
Empty
Multi CPU supportno
Also known as
- SuperTek ST-5535 system board
I/O ports1x
Disk-on-Chip Socket
1x
Floppy interface
1x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
2x
Serial
1x
TV-Out
2x
USB 1.x
1x
VGA
Expansion slots1x
32-bit EISA
Notes
JP8 is for the DOC address settings:
1-2 , 7-8: C800
1-2 , 9-10: CC00
3-4 , 7-8: D000
3-4 , 9-10: D400
5-6 , 7-8: D800
5-6 , 9-10 DC00
jumper JP13 is on 2-3 (jumpered to the battery)
jumper JP9 is on 1-2 (jumpered to the ISA/PCI-Card)
switch 1,2 is FSB, switch 3,4,5 is multiplier
switch 3 ON, 4 OFF,5 OFF = multiplier of 7 (=233MHz with a 33MHz PCI clock)
Last updated 2023-11-05T10:06:43Z
Board info score is 6.7/10
Chips
CPU family support
2 BIOS files available
Award - 2 entries
2 drivers available
Name
Version
OS support
Size
Filename
Name
Version
4.10.01.1305
OS support
Windows 3.1x
Windows NT 4.0
Size
363.2KB
Filename
Name
Version
V5.00
OS support
MS-DOS
Mac OS X
NetWare Server 3
NetWare Server 4
Netware Client32
SCO Unix - OpenServer
Windows 2000
Windows 3.1x
Windows 9x
Windows NT 3.5x
Windows NT 4.0
Size
3.3MB
Filename
No board documents available
Chip
Release date
File
Logs

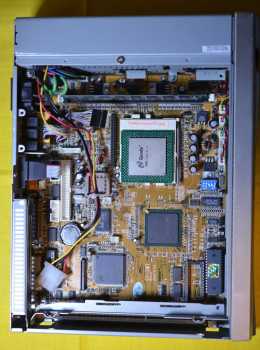

Image 1 of 2

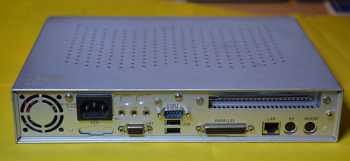

Image 2 of 2
Disclaimer
The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
