Supermicro C2SBX+
Chipset
Socket
FSB speeds 800 MHz1066 MHz1333 MHz1600 MHz
Form factorATX (max 305 x 244 mm)
Dimensions305mm x 244mm
Cache
None/Integrated in the CPU
Max RAM size
8 GB(DDR3 UDIMM)4 GB(DDR3 1600MHz XMP UDIMM)
RAM type Empty
PSU connector
I/O ports1x
3.5mm Audio Combo
2x
FireWire 400
1x
Floppy interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
6x
SATA II
2x
Serial
12x
USB 2.0
Expansion slots2x
32-bit PCI
2x
64-bit PCI-X
1x
PCIe x1
2x
PCIe x16
Notes
1600MHz CPU has to use 1600 MHz XMP Memory
Last updated 2026-02-21T13:23:39Z
Board info score is 8.5/10
Chips
-> Chipset part
-> Network
-> Super I/O
CPU family support
- Intel Core 2 Duo (Conroe/Allendale)
- Intel Core 2 Quad (Kentsfield)
- Intel Core 2 Duo (Wolfdale)
- Intel Core 2 Quad (Yorkfield)
- Intel Celeron Dual-Core (Allendale)
- Intel Celeron (Conroe-L)
- Intel Pentium Dual-Core (Allendale)
- Intel Xeon (Conroe/Allendale)
- Intel Core 2 Extreme (Kentsfield)
- Intel Xeon (Kentsfield)
- Intel Celeron Dual-Core (Wolfdale)
- Intel Pentium Dual-Core (Wolfdale)
- Intel Xeon (Wolfdale)
- Intel Core 2 Extreme (Yorkfield)
- Intel Xeon (Yorkfield)
1 BIOS file available
Phoenix - 1 entry
POST string
Note
Core Ver.
BIOS Ver.
Logs
1 driver available
Name
Version
Arch
OS support
Size
Filename
Name
Version
9.2.0.1030
Arch
OS support
Windows 2000
Windows XP/2k3
Size
Empty
Filename
1 board document available
Release date
File
Logs
Chip
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
2008-01
File
Logs
Family
Release date
2008-01
File
Logs
Family
Release date
2008-10
File
Logs
Family
Release date
2010-12
File
Logs
Family
Release date
2008-12
File
Logs
Family
Release date
2009-01
File
Logs
Family
Release date
2011-09-06
File
Logs
Family
Release date
2011-09-06
File
Logs
Family
Release date
2011-09-06
File
Logs
Family
Release date
2011-09-06
File
Logs
Family
Release date
2008-12
File
Logs
Family
Release date
2007-06
File
Logs
Family
Release date
2007-10-30
File
Logs
Family
Release date
2007-10-30
File
Logs
Family
Release date
2011-09-08
File
Logs
Family
Release date
2011-09-08
File
Logs
Family
Release date
2007-08
File
Logs
Family
Release date
2007-08
File
Logs
Family
Release date
2010-12
File
Logs
Family
Release date
2010-12
File
Logs
Family
Release date
2007-04
File
Logs
Family
Release date
2007-04
File
Logs
Family
Release date
2009-08
File
Logs
Family
Release date
2009-08
File
Logs
Family
Release date
2010-12
File
Logs
Family
Release date
2010-12
File
Logs
Family
Release date
2007-10
File
Logs
Family
Release date
2010-12
File
Logs
Family
Release date
2009-08
File
Logs
Family
Release date
2009-08
File
Logs
Family
Release date
2007-11-08
File
Logs
Family
Release date
2007-11-08
File
Logs
Family
Release date
2011-09-08
File
Logs
Family
Release date
2011-09-08
File
Logs
Family
Release date
2011-09-08
File
Logs
Family
Release date
File
Logs
Family
Release date
2011-03-21
File
Logs
Family
Release date
2011-03-21
File
Logs
Family
Release date
2011-03-21
File
Logs
Family
Release date
2011-03-21
File
Logs
Socket
Release date
File
Logs

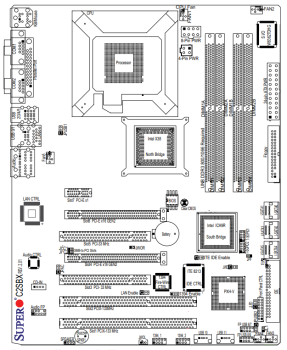

Image 1 of 3 (Supermicro)

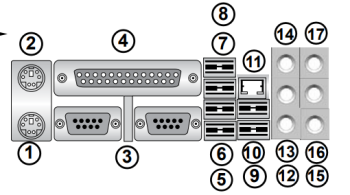

Image 2 of 3 (Supermicro)
Image 3 of 3 (Supermicro)
