Suk Jung SJ-DG486/3VLS
Logs
chipChipset
cpuSocket
Socket 3 (PGA237)
speedFSB speeds
20MHz25MHz33MHz40MHz50MHz
moboForm factor
Baby AT (max 220 x 330 mm)
dimDimensions
254mm x 218mm
chipCache
256KB
ramMax RAM size
128MB
ramRAM type
72-pin FPM
pwrPSU connector
AT (6-pin P8 + 6-pin P9)
maxcpuMulti CPU support
no
tag Also known as
connI/O ports
1x
AT Keyboard
cardExpansion slots
7x
16-bit ISA
3x
32-bit VLB
wrench Known issues
  • Leaky Ni-Cd clock battery

The Ni-Cd battery may be leaking, risking damage to PCB layers & nearby components. Promptly remove the battery & clean corrosion/alkaline salts from the board. Use white vinegar to dissolve salts, but exercise caution as vinegar can corrode exposed metals. A thorough examination & repair may be needed. Replace battery with guide: https://github.com/wiretap-retro/Not-A-Varta

Last updated 2023-10-28T22:00:19Z
Board info score is 9.3/10
chip Chips
-> Chipset part
UMC UM8496 UMC UM8498F
cpufam CPU family support
bios 2 BIOS files available

vendor AMI - 1 entry

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
40-0100-111494-00111111-040493-SJC498
Note
Core version
040493
BIOS version
Logs

vendor Award - 1 entry

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
030395-022795-2C4X6A31-SJC498-00
Note
Core version
4.50G
BIOS version
Logs
drv No drivers available
doc 1 board document available
Release date
File
Logs
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
1996-03
File
Logs
Family
Release date
1995-07
File
Logs
Family
Release date
1995-10
File
Logs
Family
Release date
1995-12
File
Logs
Family
Release date
1989-04
File
Logs
Family
Release date
1990
File
Logs
Family
Release date
1992-10
File
Logs
Family
Release date
1992-02
File
Logs

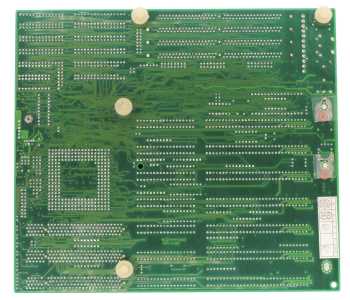

image1 Image 1 of 4 (evasive)
image2 Image 2 of 4 (BreakPoint)
image3 Image 3 of 4 (BreakPoint)
image4 Image 4 of 4
