Shuttle HOT-419 (VER.1.1)
Logs
chipChipset
cpuSocket
Socket 3 (PGA237)
speedFSB speeds
16MHz20MHz25MHz33MHz40MHz50MHz
moboForm factor
Baby AT (max 220 x 330 mm)
dimDimensions
260mm x 218mm
chipCache
64KB128KB256KB512KB
ramMax RAM size
128MB
ramRAM types
30-pin SIMM72-pin FPM
pwrPSU connector
AT (6-pin P8 + 6-pin P9)
tag Also known as
connI/O ports
1x
AT Keyboard
cardExpansion slots
6x
16-bit ISA
3x
32-bit VLB
1x
8-bit ISA
notes Notes

This board supports only 5v CPUs only unless equipped with optional 3.3v VRM.

Last updated 2025-01-10T15:11:17Z
Board info score is 9.1/10
chip Chips
cpufam CPU family support
bios 2 BIOS files available

vendor AMI - 2 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
40-P3J4-DK1343-00101111-121593-OPTi895-H
Note
secondary IDE channel does NOT work if using this release
Core version
121593
BIOS version
Logs
POST string
40-0001-001343-00101111-101094-OP802GA
Note
Core version
101094
BIOS version
Logs
drv No drivers available
doc 1 board document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
1989-04
File
Logs
Family
Release date
1990
File
Logs
Family
Release date
1992-10
File
Logs
Family
Release date
1992-02
File
Logs
image1 Image 1 of 3 (Microhouse)

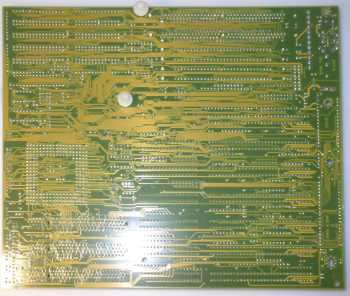

image2 Image 2 of 3
image3 Image 3 of 3
