QDI K7N2S
Chipset
Socket
FSB speeds 200MHz266MHz333MHz400MHz
Form factorATX (max 305 x 244 mm)
Dimensions295mm x 220mm
Cache
None/Integrated in the CPU
Max RAM size
3GB
RAM type DDR UDIMM
PSU connector
I/O ports2x
FireWire 400
1x
Floppy interface
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
2x
SATA I
1x
Serial
6x
USB 2.0
Expansion slots4x
1.5V AGP
5x
32-bit PCI
Known issues
- Faulty or Leaking Electrolytic Capacitors
Some motherboards may contain faulty or leaking electrolytic capacitors, which can negatively impact system performance or stability. These capacitors may exhibit issues such as bulging, leaking, or even exploding, potentially damaging other components on the motherboard. Users should inspect their capacitors regularly and replace any that are faulty or leaking to avoid damage or system instability.
Notes
FireWire ports are optional
Last updated 2024-10-01T20:57:13Z
Board info score is 9.4/10
Chips
-
Chipset part
-
Audio
CPU family support
3 BIOS files available
AMI - 3 entries
POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
63-0400-000001-00101111-121404-nForce2-N701_09F
Note
Latest BIOS
Core version
080011
BIOS version
Logs
POST string
63-0400-000001-00101111-091404-nForce2-N701_09F
Note
Core version
080011
BIOS version
Logs
POST string
63-0400-000001-00101111-073004-nForce2-N701_09F
Note
Core version
080011
BIOS version
Logs
6 drivers available
Name
Version
OS support
Size
Filename
Name
Version
5.10
OS support
Windows 2000
Windows XP
Size
30.6MB
Filename
Name
Version
5.10
OS support
Windows 2000
Windows XP
Size
30.6MB
Filename
1 board document available
Release date
File
Logs
Chip
Release date
File
Logs

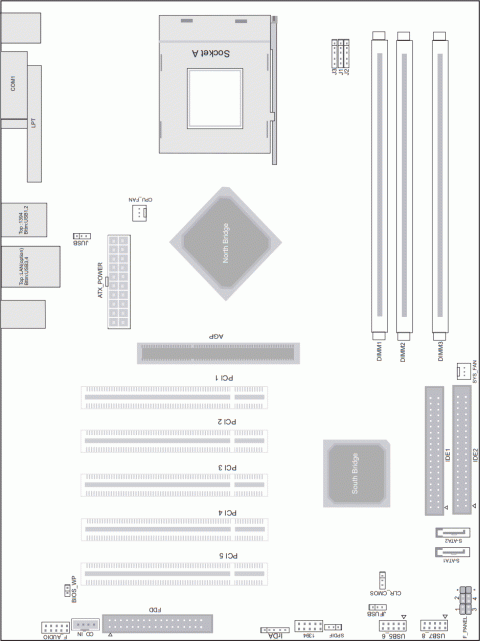

Image 1 of 2
Image 2 of 2 (QDI)
