Pegatron APXD1-DM Redwood2 (HP OEM)
Logs
chipChipset
cpuSocket
Socket FT1 (BGA413)
speedFSB speed
100 MHz
moboForm factor
Mini ITX (max 170 x 170 mm)
dimDimensions
170mm x 170mm
ramMax VRAM size
384 MB
chipCache
None/Integrated in the CPU
ramMax RAM size
32 GB(DDR3-1333)
ramRAM type
DDR3 UDIMM
pwrPSU connector
DC Jack (19V)
tag Also known as
  • HP Redwood 2

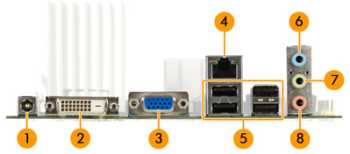

connI/O ports
1x
3.5mm Audio Combo
1x
DVI
1x
RJ-45 LAN
2x
SATA II
8x
USB 2.0
1x
VGA
cardExpansion slots
Empty
notes Notes
  • HP Pavilion 110-105l.
  • Compaq 100-125ea, 100-103la, 100-100el.
  • Soldered CPU/GPU (non-upgradable).
Last updated 2026-03-01T05:14:11Z
Board info score is 8.7/10
bios 1 BIOS file available

vendor AMI - 1 entry

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
Note
sp70481
Core version
BIOS version
Logs
drv 2 drivers available
Name
Version
Arch
OS support
Size
Filename
Name
Version
2.1.0.21
Arch
x86 , x64
OS support
Windows 7 Windows 8.x Windows Vista Windows XP/2k3
Size
5.8MB
Filename
Name
Version
R2.74
Arch
OS support
Windows 2000 Windows 7 Windows Vista Windows XP/2k3
Size
30.7MB
Filename
doc 1 board document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2010-12
File
Logs
image1 Image 1 of 4 (HP)
image2 Image 2 of 4 (Majenko)
image3 Image 3 of 4 (HP)
image4 Image 4 of 4 (HP)
