Peaktron PA286-SA1
Logs
chipChipset
cpuSockets
DIP40 PLCC68
speedFSB speeds
12.5MHz16MHz20MHz
moboForm factor
Baby AT (max 220 x 330 mm)
dimDimensions
247mm x 220mm
chipCache
None/Integrated in the CPU
ramMax RAM size
16MB
ramRAM type
30-pin SIMM
pwrPSU connector
AT (6-pin P8 + 6-pin P9)
maxcpuMulti CPU support
no
tag Also known as
connI/O ports
1x
AT Keyboard
cardExpansion slots
5x
16-bit ISA
1x
8-bit ISA
wrench Known issues
  • Leaky Ni-Cd clock battery

The Ni-Cd battery may be leaking, risking damage to PCB layers & nearby components. Promptly remove the battery & clean corrosion/alkaline salts from the board. Use white vinegar to dissolve salts, but exercise caution as vinegar can corrode exposed metals. A thorough examination & repair may be needed. Replace battery with guide: https://github.com/wiretap-retro/Not-A-Varta

Last updated 2023-12-31T22:42:39Z
Board info score is 6.7/10
chip Chips
cpufam CPU family support
bios 0 BIOS files available

vendor AMI - 1 entry

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
Note
Core version
BIOS version
Logs
drv No drivers available
doc No board documents available

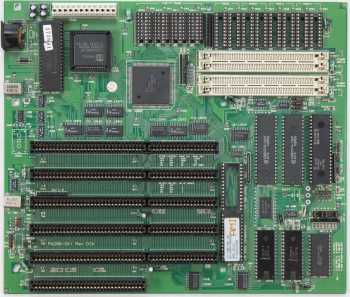

image1 Image 1 of 3 (megatron-uk)

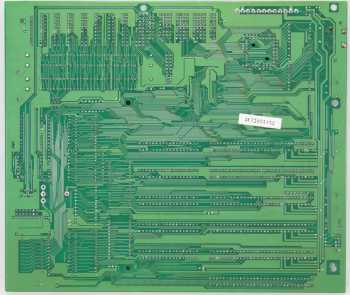

image2 Image 2 of 3 (Clous)
image3 Image 3 of 3 (Clous)
