PCPartner K266MSA-210
Chipset
Socket
FSB speeds 200 MHz266 MHz
Form factormicroATX (max 244 x 244 mm)
Dimensions244mm x 225mm
Cache
None/Integrated in the CPU
Max RAM size
2 GB
RAM type DDR UDIMM
PSU connector
Also known as
- Octek Rhino KT266 K7 MSE
- ASKA / SilverStar SST-5878MB
I/O ports1x
Floppy interface
1x
Gameport
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
2x
Serial
6x
USB 1.x
Expansion slots2x
32-bit PCI
1x
ACR
1x
Universal AGP
Last updated 2023-02-13T09:53:08Z
Board info score is 9.4/10
Chips
CPU family support
3 BIOS files available
Award - 3 entries
POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
02/22/2003-KT266A-823X-6A6LVPRZC-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
12/12/2002-VT8366-8233-6A6LVPRZC-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
10/16/2001-VT8366-8233-6A6LVPRZC-00
Note
Core version
6.00PG
BIOS version
Logs
4 drivers available
Name
Version
Arch
OS support
Size
Filename
Name
Version
5.70d
Arch
x86
OS support
Windows 2000
Windows 9x
Windows NT 3.5x
Windows NT 4.0
Windows XP/2k3
Size
3.9MB
Filename
Name
Version
V3.00a
Arch
x86
OS support
MS-DOS
Windows 2000
Windows 9x
Windows NT 4.0
Windows XP/2k3
Size
1.9MB
Filename
Version
Arch
OS support
Size
Filename
Version
Arch
OS support
Windows 2000
Windows 9x
Windows NT 4.0
Windows XP/2k3
Size
1.1MB
Filename
Version
Arch
OS support
Windows 2000
Windows 9x
Windows XP/2k3
Size
973.7KB
Filename
2 board documents available
Release date
File
Logs
Chip
Release date
File
Logs

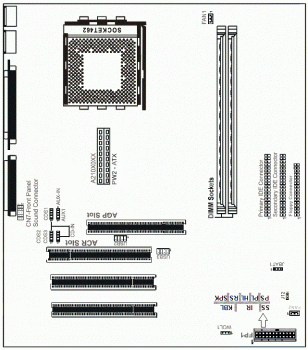

Image 1 of 2 (evasive)
Image 2 of 2
Disclaimer
The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
