PCPartner OPTI 486 VIP
Chipset
Socket
FSB speed Empty
Form factorBaby AT (max 220 x 330 mm)
DimensionsEmpty
Cache
None/Integrated in the CPU
Max RAM size
128MB
RAM types 30-pin SIMM72-pin FPM
PSU connector
I/O ports1x
AT Keyboard
Expansion slots5x
16-bit ISA
3x
32-bit PCI
3x
32-bit VLB
Also known as:
- PCPartner 35-8199-02
- Unknown 802G PCI REV:P.4
- VTech 702677B
- Lucky Star VIP REV:A
- Lucky Star OPTI V.I.P.
Known issues:
- Leaky Ni-Cd clock battery
The Ni-Cd battery may be leaking, risking damage to PCB layers & nearby components. Promptly remove the battery & clean corrosion/alkaline salts from the board. Use white vinegar to dissolve salts, but exercise caution as vinegar can corrode exposed metals. A thorough examination & repair may be needed. Replace battery with guide: https://github.com/wiretap-retro/Not-A-Varta
Notes:
2 versions exist, one with the PCI slot connectors actually mounted. Both versions are mentioned in the manual. 702677B CS marking.
Last updated 2023-01-13T12:57:06Z
Board info score is 8.8/10
Chipset parts
CPU family support
4 files available
Vendor: Phoenix [2 entries]
POST string
Note
Core Ver.
BIOS Ver.
Logs
Vendor: AMI [2 entries]
No drivers available
1 board document available
Release date
File
Logs
Chip
Release date
File
Logs
Family
Release date
File
Logs

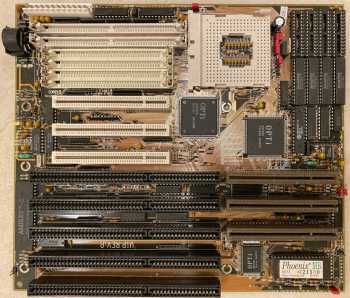

Image 1 of 7 (evasive)
Image 2 of 7 (evasive)
Image 3 of 7 (pshipkov)
Image 4 of 7
Image 5 of 7
Image 6 of 7
Image 7 of 7 (evasive)
