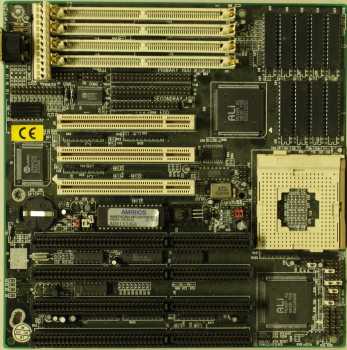

PCChips/Hsin Tech M918 (486)
Logs
chipChipset
cpuSocket
speedFSB speeds
20MHz25MHz33MHz40MHz50MHz
moboForm factor
Baby AT (max 220 x 330 mm)
dimDimensions
254mm x 218mm
chipCache
128KB256KB512KB1MB
ramMax RAM size
256MB
ramRAM types
72-pin FPM72-pin EDO
pwrPSU connector
connI/O ports
1x
AT Keyboard
1x
Floppy interface
2x
IDE interface
1x
Parallel
2x
Serial
cardExpansion slots
4x
16-bit ISA
3x
32-bit PCI
wrench Known issues
  • Fake cache

The motherboard may include a non-functional or counterfeit SRAM cache, which can adversely affect performance. Signs of fake cache often include soldered QFP or DIP-chips labeled "WRITE-BACK" with traces that do not connect to the chipset.

  • DIP chips can typically be removed and replaced with functional SRAM chips in sockets to restore cache functionality.
  • QFP fake cache chips are often not replaceable with functional cache as the PCB footprints are not chipset connected.
notes Notes

The CPU socket is not a full Socket 3, it lacks the outside rows of pins used by the Pentium OverDrive.

Is cloned as Amptron DX-9300A (VER 1.1)

Last updated 2025-01-05T22:17:40Z
Board info score is 9.1/10
chip Chips
cpufam CPU family support
bios 3 BIOS files available

vendor AMI - 3 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
41-C100-001437-00101111-101094-486PCIMB-U
Note
Core version
101094
BIOS version
Logs
POST string
41-A300-001437-00101111-101094-21011/33
Note
Core version
101094
BIOS version
Logs
POST string
41-C100-001437-00101111-101094-486PCIMB-U
Note
Core version
101094
BIOS version
Logs
drv 1 driver available
Name
Version
OS support
Size
Filename
Name
Version
1.06a
OS support
MS-DOS OS/2 Warp 3.x SCO Unix - OpenServer Windows 3.1x Windows NT 3.5x
Size
104.9KB
Filename
doc 3 board documents available
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
