PCChips/Hsin Tech M821LR
Logs
chipChipset
cpuSocket
Socket A (PGA462)
speedFSB speeds
200MHz266MHz
moboForm factor
MicroATX (max 244 x 244 mm)
dimDimensions
244mm x 220mm
ramMax VRAM size
8MB
chipCache
None/Integrated in the CPU
ramMax RAM size
2GB
ramRAM type
SDR UDIMM
pwrPSU connector
ATX 1.x (20-pin ATX)
maxcpuMulti CPU support
no
tag Also known as
connI/O ports
1x
3.5mm Audio Combo
1x
Floppy interface
1x
Gameport
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
1x
Serial
2x
USB 1.x
1x
VGA
cardExpansion slots
1x
16-bit ISA
2x
32-bit PCI
1x
AMR
Last updated 2023-05-16T17:26:03Z
Board info score is 9.4/10
bios 2 BIOS files available

vendor AMI - 2 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
62-0812-001131-00101111-071595-VIA_K7-M821LR
Note
Core version
071595
BIOS version
Logs
POST string
62-0812-001131-00101111-071595-VIA_K7-KLE133
Note
KOB KLE133 FSMx
Core version
071595
BIOS version
Logs
drv 14 drivers available
Name
Version
OS support
Size
Filename
Name
Version
A4.06
OS support
Windows 2000 Windows 9x Windows XP
Size
17.9MB
Filename
Name
Version
A2.53
OS support
Windows 2000 Windows 9x Windows NT 4.0 Windows XP
Size
14.5MB
Filename
Name
Version
4.43V
OS support
Windows 2000 Windows 9x Windows NT 4.0 Windows XP
Size
1.1MB
Filename
Name
Version
4.35V
OS support
Windows 2000 Windows 9x Windows XP
Size
973.7KB
Filename
Name
Version
Empty
OS support
MS-DOS
Size
227.7KB
Filename
Name
Version
5.70d
OS support
Windows 2000 Windows 9x Windows NT 3.5x Windows NT 4.0 Windows XP
Size
3.9MB
Filename
Name
Version
V3.00a
OS support
MS-DOS Windows 2000 Windows 9x Windows NT 4.0 Windows XP
Size
1.9MB
Filename
Name
Version
2.20a
OS support
MS-DOS OS/2 Warp 4.x Windows 9x Windows NT 4.0 Windows XP
Size
4.3MB
Filename
Name
Version
2.10c
OS support
MS-DOS OS/2 Warp 4.x Windows 2000 Windows 9x Windows NT 3.5x Windows NT 4.0 Windows XP
Size
4.3MB
Filename
Name
Version
4.13.01.3124
OS support
Windows 9x
Size
4.9MB
Filename
Name
Version
4.13.01.3124
OS support
Windows 9x
Size
4.9MB
Filename
Name
Version
4.11.01.2182
OS support
Windows 9x
Size
3.3MB
Filename
Name
Version
4.03.00.3120
OS support
Windows NT 4.0
Size
8.2MB
Filename
Name
Version
4.03.00.3120
OS support
Windows NT 4.0
Size
8.2MB
Filename
doc 2 board documents available
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2001-05
File
Logs
Chip
Release date
File
Logs

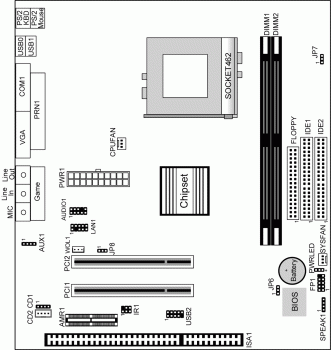

image1 Image 1 of 2 (evasive)
image2 Image 2 of 2
