PCChips/Hsin Tech M812LMR V1.2
Chipset
Socket
FSB speed Empty
Form factorBaby AT (max 220 x 330 mm)
Dimensions220mm x 220mm
Max VRAM size64 MB
Cache
None/Integrated in the CPU
Max RAM size
1 GB
RAM type SDR UDIMM
PSU connector
Also known as
- PCChips/Hsin Tech M812LR V1.2
- PCChips/Hsin Tech M812MR V1.2
- PCChips/Hsin Tech M812 V1.2
I/O ports1x
AT Keyboard
1x
Floppy interface
2x
IDE interface
1x
Parallel
1x
RJ-45 LAN
1x
Serial
2x
USB 1.x
Expansion slots2x
32-bit PCI
1x
AMR
Last updated 2024-04-18T16:52:37Z
Board info score is 9/10
Chips
CPU family support
1 BIOS file available
AMI - 1 entry
POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
62-0712-001437-00101111-071595-SiS730S-M812LMR
Note
Core version
071595
BIOS version
Logs
14 drivers available
Name
Version
Arch
OS support
Size
Filename
Name
Version
4.03
Arch
x86
OS support
Linux
Size
210.2KB
Filename
Name
Version
2.23
Arch
x86
OS support
Windows NT 4.0
Size
62.2KB
Filename
Name
Version
4.06.1096
Arch
x86
OS support
Windows 9x
Size
1.8MB
Filename
Name
Version
5.12.01.0639
Arch
x86
OS support
Windows 9x
Size
3.1MB
Filename
Name
Version
2.30
Arch
x86
OS support
Windows NT 4.0
Size
156KB
Filename
Name
Version
5.21.01.643
Arch
x86
OS support
Windows 2000
Windows 9x
Size
3.2MB
Filename
Name
Version
5.12.01.0639
Arch
x86
OS support
Windows XP/2k3
Size
3.1MB
Filename
Name
Version
2.08A
Arch
OS support
Windows 9x
Size
Empty
Filename
Name
Version
2.08A
Arch
OS support
Windows NT 4.0
Size
Empty
Filename
Name
Version
1.21
Arch
OS support
Windows 2000
Windows 9x
Windows XP/2k3
Size
Empty
Filename
Name
Version
2.04A
Arch
OS support
Windows 2000
Windows 9x
Windows XP/2k3
Size
Empty
Filename
Version
Arch
OS support
Size
Filename
1 board document available
Release date
File
Logs
Chip
Release date
File
Logs

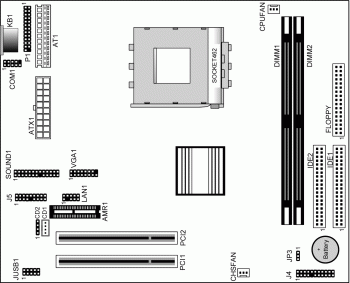

Image 1 of 2 (PCChips/Hsin Tech)
Image 2 of 2
