PCChips/Hsin Tech M590
Logs
chipChipset
cpuSocket
Socket 7 (PGA321)
speedFSB speeds
50MHz60MHz66MHz75MHz83MHz100MHz
moboForm factor
Baby AT (max 220 x 330 mm)
dimDimensions
254mm x 218mm
ramMax VRAM size
8MB
chipCache
1MB
ramMax RAM size
384MB
ramRAM types
72-pin EDOSDR UDIMM
pwrPSU connector
ATX 1.x (20-pin ATX) AT (6-pin P8 + 6-pin P9)
maxcpuMulti CPU support
no
tag Also known as
connI/O ports
1x
AT Keyboard
1x
Floppy interface
1x
Gameport
2x
IDE interface
1x
IrDA
1x
PS/2 mouse
1x
Parallel
2x
Serial
1x
VGA
cardExpansion slots
2x
16-bit ISA
3x
32-bit PCI
notes Notes

Proprietary headers for breakout cards (for pinouts refer to manual):

  • J1: sound and game port
  • J3: PS/2 mouse, IrDA, 2 USB ports
  • JP4: VGA output
Last updated 2025-02-20T14:36:37Z
Board info score is 10/10
bios 6 BIOS files available

vendor AMI - 6 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
51-1217-001437-00101111-071595-570-001_10_CHIPSET
Note
Core version
071595
BIOS version
Logs
POST string
51-1209-001437-00101111-071595-570-001_10_CHIPSET
Note
Core version
071595
BIOS version
Logs
POST string
51-1202-001437-00101111-071595-570-001_10_CHIPSET
Note
4MB VGA version
Core version
071595
BIOS version
Logs
POST string
51-0814-001437-00101111-071595-570-001_10_CHIPSET
Note
Core version
071595
BIOS version
Logs
POST string
51-0731-001437-00101111-071595-570-001_10_CHIPSET
Note
Core version
071595
BIOS version
Logs
POST string
51-0625-001437-00101111-071595-570-001_10_CHIPSET
Note
Core version
071595
BIOS version
Logs
drv 18 drivers available
Name
Version
OS support
Size
Filename
Name
Version
4.10.0.00152
OS support
Windows 9x Windows NT 4.0
Size
35.9MB
Filename
Name
Version
4.10.00.0152
OS support
MS-DOS Windows 3.1x Windows 9x Windows NT 4.0
Size
27.2MB
Filename
Name
Version
4.10.00.0200
OS support
Windows 9x
Size
3.7MB
Filename
Name
Version
4.10.00.0164
OS support
Windows 9x
Size
3.7MB
Filename
Name
Version
4.10.00.0130
OS support
Empty
Size
863.1KB
Filename
Name
Version
1.28WHQL
OS support
MS-DOS
Size
80.5KB
Filename
Name
Version
1.28WHQL
OS support
OS/2 2.x OS/2 Warp 3.x
Size
2.2MB
Filename
Name
Version
1.28WHQL
OS support
Windows 2000
Size
109.1KB
Filename
Name
Version
1.28WHQL
OS support
Windows 3.1x
Size
2.5MB
Filename
Name
Version
1.28WHQL
OS support
Windows 9x
Size
2.5MB
Filename
Name
Version
1.28WHQL
OS support
Windows NT 3.5x Windows NT 4.0
Size
199.5KB
Filename
Name
Version
1.21
OS support
Windows 2000 Windows 9x Windows XP
Size
Empty
Filename
Name
Version
1.40
OS support
Windows 9x
Size
Empty
Filename
Name
Version
1.40
OS support
Windows 9x
Size
Empty
Filename
Name
Version
2.04A
OS support
Windows 2000 Windows 9x Windows XP
Size
Empty
Filename
Name
Version
2.13
OS support
MS-DOS OS/2 Warp 3.x OS/2 Warp 4.x Windows 9x Windows NT 3.1 Windows NT 3.5x Windows NT 4.0
Size
Empty
Filename
Name
Version
1.4
OS support
Windows 9x Windows NT 3.1 Windows NT 3.5x Windows NT 4.0
Size
923.7KB
Filename
Name
Version
1.07
OS support
OS/2 1.x Windows 3.1x Windows 9x Windows NT 3.5x Windows NT 4.0
Size
21.4MB
Filename
doc 4 board documents available
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1997-05-12
File
Logs
Family
Release date
File
Logs
Family
Release date
2000-09
File
Logs
Family
Release date
1999-12
File
Logs
Family
Release date
2000-04
File
Logs
Family
Release date
2000-11
File
Logs
Family
Release date
1997-06
File
Logs
Family
Release date
1998-01
File
Logs
Family
Release date
1997-06
File
Logs
Family
Release date
1997-08
File
Logs

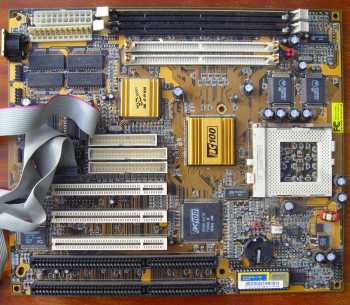

image1 Image 1 of 7 (Microhouse)
image2 Image 2 of 7 (Carlos S. M.)
image3 Image 3 of 7 (Petuhr)
image4 Image 4 of 7 (Petuhr)
image5 Image 5 of 7
image6 Image 6 of 7
image7 Image 7 of 7
