PCChips/Hsin Tech M216
Logs
chipChipset
cpuSockets
DIP40 PLCC68
speedFSB speeds
16MHz20MHz25MHz
moboForm factor
Baby AT (max 220 x 330 mm)
dimDimensions
175mm x 220mm
chipCache
None/Integrated in the CPU
ramMax RAM size
4MB
ramRAM type
30-pin SIMM
pwrPSU connector
AT (6-pin P8 + 6-pin P9)
maxcpuMulti CPU support
no
connI/O ports
1x
AT Keyboard
cardExpansion slots
6x
16-bit ISA
wrench Known issues
  • Leaky Ni-Cd clock battery

The Ni-Cd battery may be leaking, risking damage to PCB layers & nearby components. Promptly remove the battery & clean corrosion/alkaline salts from the board. Use white vinegar to dissolve salts, but exercise caution as vinegar can corrode exposed metals. A thorough examination & repair may be needed. Replace battery with guide: https://github.com/wiretap-retro/Not-A-Varta

Last updated 2023-05-02T16:31:06Z
Board info score is 9.1/10
chip Chips
cpufam CPU family support
bios 1 BIOS file available

vendor AMI - 1 entry

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
30-0000-ZZ1437-00101111-070791-PC CHIPS
Note
Core version
070791
BIOS version
Logs
drv No drivers available
doc 1 board document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs

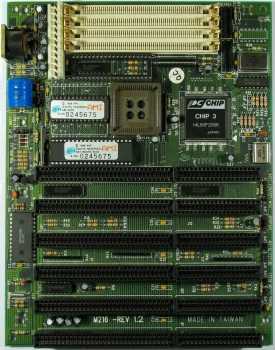

image1 Image 1 of 4 (Microhouse)

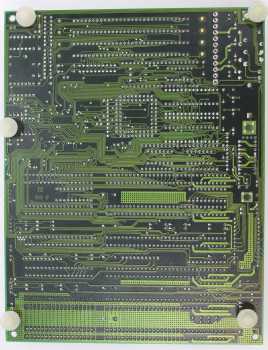

image2 Image 2 of 4 (Clous)
image3 Image 3 of 4 (old_pc_parts)
image4 Image 4 of 4 (Clous)
