Octek PANTHER IV
Logs
chipChipset
cpuSockets
PLCC68 PQFP100
speedFSB speeds
16MHz20MHz25MHz33MHz
moboForm factor
Baby AT (max 220 x 330 mm)
dimDimensions
Empty
chipCache
None/Integrated in the CPU
ramMax RAM size
16MB
ramRAM type
30-pin SIMM
pwrPSU connector
AT (6-pin P8 + 6-pin P9)
tag Also known as
connI/O ports
1x
AT Keyboard
cardExpansion slots
4x
16-bit ISA
1x
8-bit ISA
wrench Known issues
  • Leaky Ni-Cd clock battery

The Ni-Cd battery may be leaking, risking damage to PCB layers & nearby components. Promptly remove the battery & clean corrosion/alkaline salts from the board. Use white vinegar to dissolve salts, but exercise caution as vinegar can corrode exposed metals. A thorough examination & repair may be needed. Replace battery with guide: https://github.com/wiretap-retro/Not-A-Varta

Last updated 2024-07-07T21:00:57Z
Board info score is 9.2/10
bios 2 BIOS files available

vendor AMI - 1 entry

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
30-0200-420000-00101111-050591-OPSX
Note
Core version
050591
BIOS version
Logs

vendor Mr. BIOS - 1 entry

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
OPTI317
Note
V007B317
Core version
1.65
BIOS version
Logs
drv No drivers available

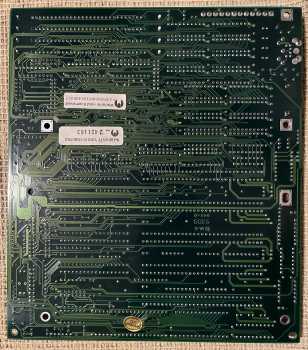

image1 Image 1 of 4 (evasive)

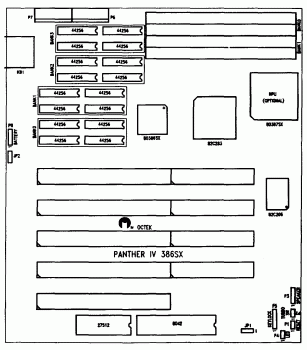

image2 Image 2 of 4 (krivulak)

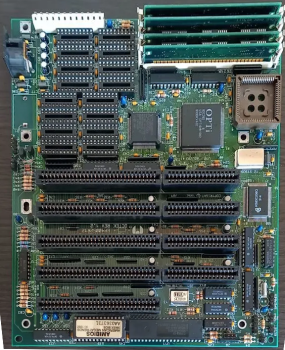

image3 Image 3 of 4 (krivulak)
image4 Image 4 of 4
