MSI P45 Platinum (MS-7512 VER.1.x)
Chipset
Socket
FSB speeds 800MHz1066MHz1333MHz1600MHz
Form factorATX (max 305 x 244 mm)
Dimensions305mm x 244mm
Cache
None/Integrated in the CPU
Max RAM size
16GB
RAM type DDR2 UDIMM
PSU connector
Also known as
- MSI P45 Zilent
I/O ports2x
FireWire 400
1x
Floppy interface
1x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
RJ-45 LAN
1x
S/PDIF
8x
SATA II
1x
Serial
1x
Toslink
12x
USB 2.0
1x
eSATA
Expansion slots2x
32-bit PCI
2x
PCIe x1
2x
PCIe x16
Notes
Uses JMB363 IDE controller.
Uses JMicron 381 FireWire controller.
Uses Realtek 8111C gigabit Ethernet controller.
Last updated 2024-10-24T18:47:20Z
Board info score is 9.4/10
Chips
-
Chipset part
CPU family support
- Core 2 Quad (Yorkfield)
- Core 2 Duo (Wolfdale)
- Core 2 Quad (Kentsfield)
- Core 2 Duo (Conroe/Allendale)
- Core 2 Extreme (Yorkfield)
- WTL4167
- Celeron Dual-Core (Wolfdale)
- Pentium Dual-Core (Wolfdale)
- Core 2 Extreme (Kentsfield)
- Pentium Dual-Core (Allendale)
- Celeron Dual-Core (Allendale)
- Celeron (Conroe-L)
8 BIOS files available
AMI - 8 entries
POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
66-0100-009999-00101111-121209-Eaglelake-A7512100
Note
Fixes Core2Quad Overclocking stability
Core version
080015
BIOS version
Logs
POST string
66-0100-009999-00101111-022009-Eaglelake-A7512100
Note
Core version
080015
BIOS version
Logs
POST string
66-0100-009999-00101111-112008-Eaglelake-A7512200
Note
Core version
080015
BIOS version
Logs
POST string
66-0100-009999-00101111-091108-Eaglelake-A7512200
Note
Core version
080015
BIOS version
Logs
POST string
66-0100-009999-00101111-081908-Eaglelake-A7512200
Note
Core version
080015
BIOS version
Logs
POST string
66-0100-009999-00101111-072308-Eaglelake-A7512200
Note
Core version
080015
BIOS version
Logs
POST string
66-0100-009999-00101111-061608-Eaglelake-A7512200
Note
Core version
080015
BIOS version
Logs
POST string
66-0100-009999-00101111-052108-Eaglelake-A7512200
Note
Core version
080015
BIOS version
Logs
2 drivers available
Name
Version
OS support
Size
Filename
Name
Version
9.2.0.1030
OS support
Windows 2000
Windows XP
Size
Empty
Filename
Name
Version
R2.74
OS support
Windows 2000
Windows 7
Windows Vista
Windows XP
Size
30.7MB
Filename
1 board document available
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2006-04-25
File
Logs
Chip
Release date
2008-04-07
File
Logs
Chip
Release date
2010-07
File
Logs
Chip
Release date
2008-09
File
Logs
Chip
Release date
2008-10
File
Logs
Chip
Release date
2013-09
File
Logs
Chip
Release date
2008-07
File
Logs
Family
Release date
File
Logs
Family
Release date
2008-01
File
Logs
Family
Release date
2008-01
File
Logs
Family
Release date
2008-10
File
Logs
Family
Release date
2010-12
File
Logs
Family
Release date
2008-12
File
Logs
Family
Release date
2009-01
File
Logs
Family
Release date
2011-09-06
File
Logs
Family
Release date
2011-09-06
File
Logs
Family
Release date
2011-09-06
File
Logs
Family
Release date
2011-09-06
File
Logs
Family
Release date
2008-12
File
Logs
Family
Release date
2007-06
File
Logs
Family
Release date
2007-10-30
File
Logs
Family
Release date
2007-10-30
File
Logs
Family
Release date
2011-09-08
File
Logs
Family
Release date
2011-09-08
File
Logs
Family
Release date
2007-08
File
Logs
Family
Release date
2007-08
File
Logs
Family
Release date
2010-12
File
Logs
Family
Release date
2010-12
File
Logs
Family
Release date
2007-04
File
Logs
Family
Release date
2007-04
File
Logs
Family
Release date
2009-08
File
Logs
Family
Release date
2009-08
File
Logs
Family
Release date
2010-12
File
Logs
Family
Release date
2010-12
File
Logs
Family
Release date
2007-10
File
Logs
Family
Release date
2010-12
File
Logs
Family
Release date
2009-08
File
Logs
Family
Release date
2009-08
File
Logs
Family
Release date
2007-11-08
File
Logs
Family
Release date
2007-11-08
File
Logs
Family
Release date
2011-09-08
File
Logs
Family
Release date
2011-09-08
File
Logs
Family
Release date
2011-09-08
File
Logs
Family
Release date
File
Logs
Socket
Release date
File
Logs
Socket
Release date
2006-02
File
Logs

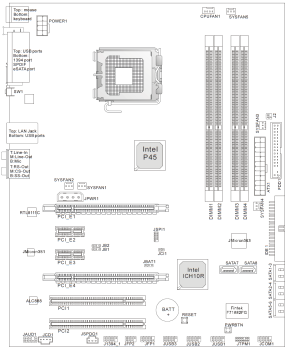

Image 1 of 2
Image 2 of 2
