MSI MS-3119 (VLSI)
Logs
chipChipset
cpuSockets
PLCC68 PQFP100
speedFSB speeds
16MHz20MHz25MHz
moboForm factor
Baby AT (max 220 x 330 mm)
dimDimensions
230mm x 215mm
chipCache
None/Integrated in the CPU
ramMax RAM size
32MB
ramRAM type
30-pin SIMM
pwrPSU connector
AT (6-pin P8 + 6-pin P9)
tag Also known as
connI/O ports
1x
AT Keyboard
cardExpansion slots
6x
16-bit ISA
2x
8-bit ISA
wrench Known issues
  • Leaky Ni-Cd clock battery

The Ni-Cd battery may be leaking, risking damage to PCB layers & nearby components. Promptly remove the battery & clean corrosion/alkaline salts from the board. Use white vinegar to dissolve salts, but exercise caution as vinegar can corrode exposed metals. A thorough examination & repair may be needed. Replace battery with guide: https://github.com/wiretap-retro/Not-A-Varta

Last updated 2024-08-24T15:09:24Z
Board info score is 7.9/10
bios 0 BIOS files available

vendor AMI - 1 entry

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
Note
Core version
BIOS version
Logs
drv 1 driver available
Name
Version
OS support
Size
Filename
Name
Version
r02
OS support
MS-DOS
Size
6.4KB
Filename
doc 1 board document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs

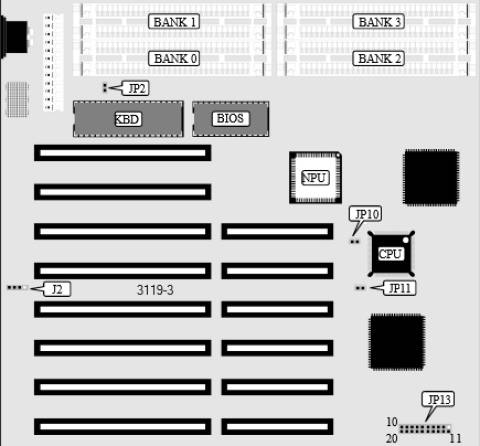

image1 Image 1 of 2 (Fo-91)
image2 Image 2 of 2 (Paul9)
