MSI K9N6PGM2-V
Logs
chipChipset
cpuSockets
Socket AM2 (mPGA940) Socket AM2+ (mPGA940) Socket AM3 (mPGA941)
speedFSB speed
Empty
moboForm factor
MicroATX (max 244 x 244 mm)
dimDimensions
244mm x 205mm
ramMax VRAM size
256MB
chipCache
None/Integrated in the CPU
ramMax RAM size
8GB(DDR2-800)
ramRAM type
DDR2 UDIMM
pwrPSU connector
ATX 2.x (24-pin ATX) ATX P4 connector 12v (4-pin P4)
tag Also known as
  • MSI MS-7309 VER:1.3

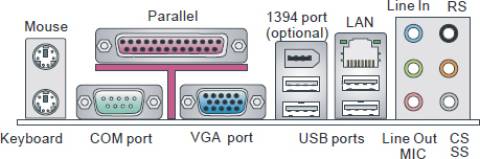

connI/O ports
1x
3.5mm Audio Combo
1x
Floppy interface
1x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
1x
S/PDIF
2x
SATA II
1x
Serial
8x
USB 2.0
1x
VGA
cardExpansion slots
2x
32-bit PCI
1x
PCIe x1
1x
PCIe x16
notes Notes
  • Limited 65W AM3 CPU support with updated BIOS.
Last updated 2024-08-19T14:25:46Z
Board info score is 9.6/10
bios 8 BIOS files available

vendor AMI - 8 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
64-0100-000001-00101111-122309-ATHLON64-1ADKR017
Note
A7309NMS V9.9 122309
Core version
080015
BIOS version
Logs
POST string
64-0100-000001-00101111-102609-ATHLON64-1ADKR017
Note
A7309NMS V9.8 102609
Core version
080015
BIOS version
Logs
POST string
64-0100-000001-00101111-091809-ATHLON64-1ADKR017
Note
A7309NMS V9.7 091809
Core version
080015
BIOS version
Logs
POST string
64-0100-000001-00101111-040909-ATHLON64-1ADKR017
Note
A7309NMS V9.5 040909
Core version
080015
BIOS version
Logs
POST string
64-0100-000001-00101111-021709-ATHLON64-1ADKR017
Note
A7309NMS V9.4 021709
Core version
080015
BIOS version
Logs
POST string
64-0100-000001-00101111-010909-ATHLON64-1ADKR017
Note
A7309NMS V9.3 010909
Core version
080015
BIOS version
Logs
POST string
64-0100-000001-00101111-090508-ATHLON64-1ADKR017
Note
A7309NMS V9.2 090508
Core version
080015
BIOS version
Logs
POST string
64-0100-000001-00101111-051408-ATHLON64-1ADKR017
Note
A7309NMS V9.0 051408
Core version
080015
BIOS version
Logs
drv 2 drivers available
Name
Version
OS support
Size
Filename
Name
Version
15.23
OS support
Windows XP
Size
50.9MB
Filename
Name
Version
R2.74
OS support
Windows 2000 Windows 7 Windows Vista Windows XP
Size
30.7MB
Filename
doc 1 board document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2006-04-25
File
Logs
Chip
Release date
2008-04-07
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs

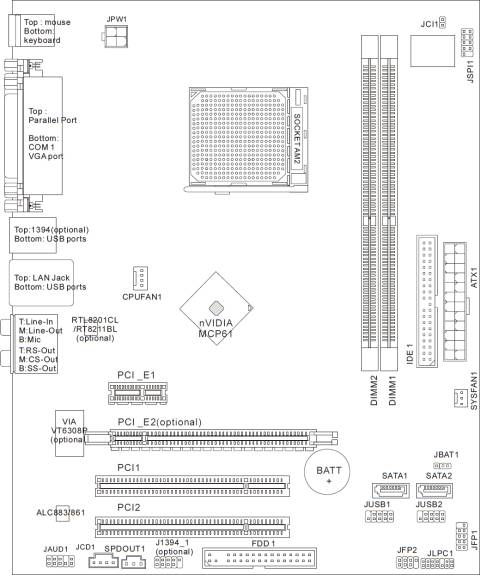

image1 Image 1 of 5 (MSI)
image2 Image 2 of 5 (Motherboard Continuum)
image3 Image 3 of 5 (Motherboard Continuum)
image4 Image 4 of 5 (Motherboard Continuum)
image5 Image 5 of 5 (MSI)
