MSI K7N2 Delta2 Platinum
Logs
chipChipset
cpuSocket
Socket A (PGA462)
speedFSB speeds
266MHz333MHz400MHz
moboForm factor
ATX (max 305 x 244 mm)
dimDimensions
Empty
chipCache
None/Integrated in the CPU
ramMax RAM size
3GB
ramRAM type
DDR UDIMM
pwrPSU connector
ATX 1.x (20-pin ATX) ATX P4 connector 12v (4-pin P4)
maxcpuMulti CPU support
no
tag Also known as
  • MSI MS-6570E V1.x Type II
connI/O ports
3x
FireWire 400
1x
Floppy interface
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
1x
S/PDIF
2x
SATA I
1x
Serial
6x
USB 2.0
1x
VGA
cardExpansion slots
1x
1.5V AGP
5x
32-bit PCI
notes Notes

IEE1394 is optional.

Last updated 2024-10-24T10:48:19Z
Board info score is 9.3/10
bios 10 BIOS files available

vendor Award - 10 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
06/07/2005-MS-6570E-6A61BM4KC-00
Note
modded bios, use at own risk:DDED romsips by digitalbath
Core version
6.00PG
BIOS version
Logs
POST string
06/07/2005-MS-6570E-6A61BM4KC-00
Note
modded bios, use at own risk: modded DB, rev.A romsips by digitalbath
Core version
6.00PG
BIOS version
Logs
POST string
06/07/2005-MS-6570E-6A61BM4KC-00
Note
modded bios, use at own risk: modded Merlins ED romsips; changed register 68h to 33 and modded multi-tables for high multi
Core version
6.00PG
BIOS version
Logs
POST string
06/07/2005-MS-6570E-6A61BM4KC-00
Note
modded bios, use at own risk: DFI 11/24 263+ romsips
Core version
6.00PG
BIOS version
Logs
POST string
03/15/2006-MS-6570E-6A61BM4KC-00
Note
beta, set DOT to private for stability
Core version
6.00PG
BIOS version
Logs
POST string
06/07/2005-MS-6570E-6A61BM4KC-00
Note
beta, set DOT to private for stability
Core version
6.00PG
BIOS version
Logs
POST string
03/31/2005-MS-6570E-6A61BM4KC-00
Note
beta, set DOT to private for stability
Core version
6.00PG
BIOS version
Logs
POST string
01/20/2005-MS-6570E-6A61BM4KC-00
Note
set DOT to private for stability
Core version
6.00PG
BIOS version
Logs
POST string
08/16/2004-MS-6570E-6A61BM4KC-00
Note
set DOT to private for stability
Core version
6.00PG
BIOS version
Logs
POST string
07/28/2004-MS-6570E-6A61BM4KC-00
Note
Core version
6.00PG
BIOS version
Logs
drv 6 drivers available
Name
Version
OS support
Size
Filename
Name
Version
5.10
OS support
Windows 2000 Windows XP
Size
30.6MB
Filename
Name
Version
5.10
OS support
Windows 2000 Windows XP
Size
30.6MB
Filename
Name
Version
4.27
OS support
Windows 9x
Size
6.9MB
Filename
Name
Version
4.27
OS support
Windows 9x
Size
6.9MB
Filename
Name
Version
4.27
OS support
Windows 9x
Size
6.9MB
Filename
Name
Version
A4.06
OS support
Windows 2000 Windows 9x Windows XP
Size
17.9MB
Filename
doc 2 board documents available
Release date
File
Logs
Release date
File
Logs
Release date
2004-07
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2001-10-30
File
Logs
Chip
Release date
2002-07-19
File
Logs
Chip
Release date
2003-08-07
File
Logs
Chip
Release date
2006-09-26
File
Logs

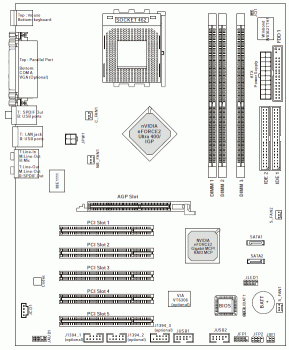

image1 Image 1 of 3 (evasive)

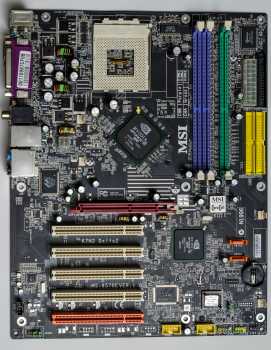

image2 Image 2 of 3 (cha0shacker)
image3 Image 3 of 3 (digitalbath)
