MSI 845PE Max2-FIR (MS-6704 ver 1.0)
Logs
chipChipset
cpuSocket
Socket 478 (mPGA478)
speedFSB speeds
400MHz533MHz
moboForm factor
ATX (max 305 x 244 mm)
dimDimensions
Empty
chipCache
None/Integrated in the CPU
ramMax RAM size
2GB
ramRAM type
DDR UDIMM
pwrPSU connector
Molex (4-pin) ATX 1.x (20-pin ATX) ATX P4 connector 12v (4-pin P4)
maxcpuMulti CPU support
no
tag Also known as
  • MSI 845PE Max2 (MS-6704 ver 1.0) (no RAID/no IEEE1394/no GB LAN)
  • MSI 845PE Max2-R (MS-6704 ver 1.0) (no IEEE1394/no GB LAN)
connI/O ports
1x
3.5mm Audio Combo
2x
FireWire 400
1x
Floppy interface
1x
Gameport
4x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
2x
Serial
6x
USB 2.0
cardExpansion slots
1x
1.5V AGP
6x
32-bit PCI
1x
CNR
Last updated 2023-10-19T14:29:34Z
Board info score is 9.7/10
bios 4 BIOS files available

vendor AMI - 4 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
63-1300-001169-00101111-040201-845GE/PE-16704000
Note
Core version
070010
BIOS version
Logs
POST string
63-1200-001169-00101111-040201-845GE/PE-16704000
Note
Core version
070010
BIOS version
Logs
POST string
63-1100-001169-00101111-040201-I845G-1I845000
Note
Core version
070010
BIOS version
Logs
POST string
63-1000-001169-00101111-040201-I845G-1I845000
Note
Core version
070010
BIOS version
Logs
drv 23 drivers available
Name
Version
OS support
Size
Filename
Name
Version
1.98
OS support
MS-DOS
Size
64.9KB
Filename
Name
Version
4.03
OS support
Linux
Size
210.2KB
Filename
Name
Version
2.23
OS support
Windows NT 4.0
Size
62.2KB
Filename
Name
Version
5.35
OS support
Windows 2000
Size
26.2KB
Filename
Name
Version
5.12.01.0639
OS support
Windows 2000
Size
3.1MB
Filename
Name
Version
4.06.1096
OS support
Windows 9x
Size
1.8MB
Filename
Name
Version
5.12.01.0639
OS support
Windows 9x
Size
3.1MB
Filename
Name
Version
2.30
OS support
Windows NT 4.0
Size
156KB
Filename
Name
Version
5.21.01.643
OS support
Windows 2000 Windows 9x
Size
3.2MB
Filename
Name
Version
5.12.01.0639
OS support
Windows XP
Size
3.1MB
Filename
Name
Version
6.3.0.1007
OS support
Windows 2000 Windows 9x Windows XP
Size
Empty
Filename
Name
Version
2.11.15
OS support
Windows 2000 Windows XP
Size
1.9MB
Filename
Name
Version
6.2
OS support
Linux MS-DOS NetWare Server 3 NetWare Server 4 Netware Client32 OS/2 2.x Windows 2000 Windows 9x Windows NT 4.0
Size
64.3MB
Filename
Name
Version
2003
OS support
MS-DOS OS/2 2.x
Size
554.8KB
Filename
Name
Version
2003
OS support
Windows 2000
Size
12.3MB
Filename
Name
Version
2003
OS support
Windows 9x
Size
1.4MB
Filename
Name
Version
2003
OS support
Windows 9x
Size
8.7MB
Filename
Name
Version
2003
OS support
Windows 9x
Size
1.5MB
Filename
Name
Version
2003
OS support
Windows 9x
Size
8.9MB
Filename
Name
Version
2003
OS support
Windows NT 4.0
Size
7.6MB
Filename
Name
Version
2.11.15.0
OS support
Windows 2000 Windows XP
Size
3.4MB
Filename
Name
Version
3.40.1001
OS support
Windows 2000 Windows 9x Windows XP
Size
2.2MB
Filename
Name
Version
11.1
OS support
MS-DOS Windows 2000 Windows 9x Windows XP
Size
36.4MB
Filename
doc 1 board document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2002-05
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2003-05
File
Logs
Chip
Release date
2003-06
File
Logs
Chip
Release date
2006-09
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2001-10-30
File
Logs
Chip
Release date
2002-07-19
File
Logs
Chip
Release date
2006-06-09
File
Logs
Chip
Release date
1998-09-25
File
Logs
Family
Release date
File
Logs
Family
Release date
2001-02
File
Logs
Family
Release date
File
Logs
Family
Release date
2002-11
File
Logs
Family
Release date
2002-11
File
Logs
Family
Release date
2004-02
File
Logs
Family
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
2001-08
File
Logs
Family
Release date
File
Logs
Family
Release date
2002-05
File
Logs
Family
Release date
File
Logs
Socket
Release date
File
Logs
Socket
Release date
2001-10
File
Logs
Socket
Release date
2002-05
File
Logs
Socket
Release date
2002-10
File
Logs
Socket
Release date
2001-08
File
Logs

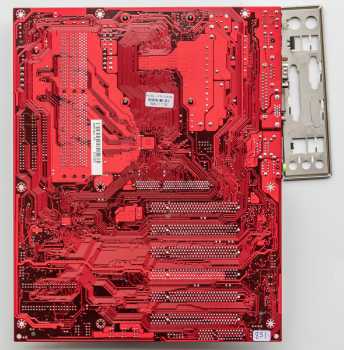

image1 Image 1 of 5 (evasive)

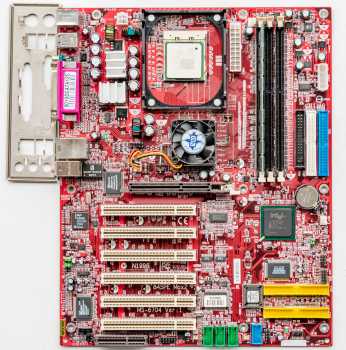

image2 Image 2 of 5

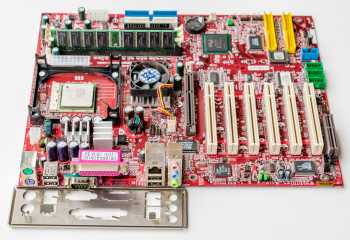

image3 Image 3 of 5 (Motherboard Continuum)

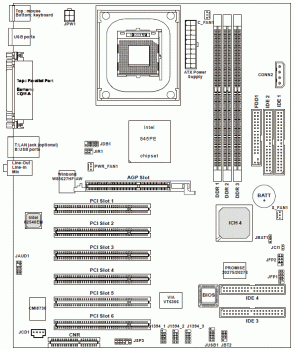

image4 Image 4 of 5 (Motherboard Continuum)
image5 Image 5 of 5 (Motherboard Continuum)
