MSI 785GM-E65
Chipset
Socket
FSB speed Empty
Form factorMicroATX (max 244 x 244 mm)
Dimensions244mm x 244mm
Max VRAM size512MB
Cache
None/Integrated in the CPU
Max RAM size
16GB
RAM type DDR3 UDIMM
PSU connector
Also known as
- MSI MS-7596 Ver:1.2
I/O ports1x
3.5mm Audio Combo
1x
DVI
2x
FireWire 400
1x
Floppy interface
1x
HDMI
1x
IDE interface
1x
PS/2 KB+MS Combo
1x
Parallel
1x
RJ-45 LAN
2x
S/PDIF
5x
SATA II
1x
Serial
12x
USB 2.0
1x
VGA
1x
eSATA II
Expansion slots2x
32-bit PCI
1x
PCIe x1
1x
PCIe x16
Last updated 2025-12-20T20:03:05Z
Board info score is 7.7/10
Chips
-> Chipset part
-> Audio
-> Clock Synth / PLL
-> FireWire ctrl.
-> Network
-> Super I/O
CPU family support
0 BIOS files available
1 driver available
Name
Version
OS support
Size
Filename
Name
Version
R2.74
OS support
Windows 2000
Windows 7
Windows Vista
Windows XP
Size
30.7MB
Filename
1 board document available
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2008-11-14
File
Logs

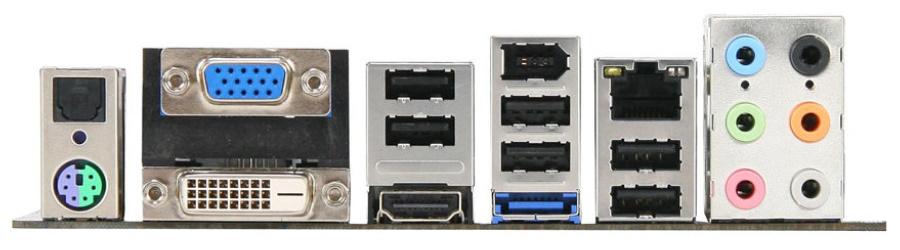

Image 1 of 3 (MSI)

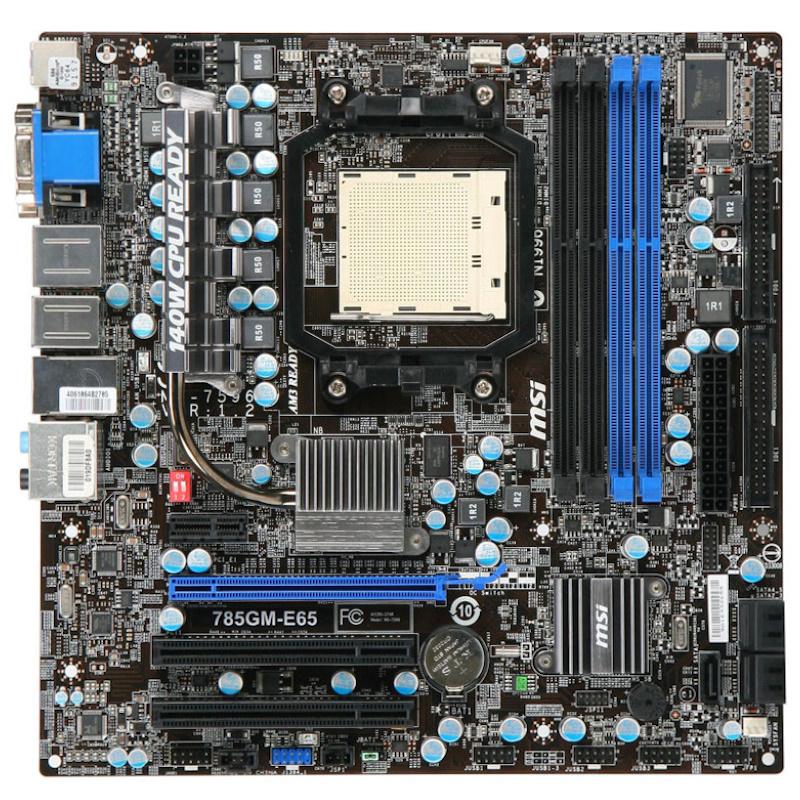

Image 2 of 3 (MSI)

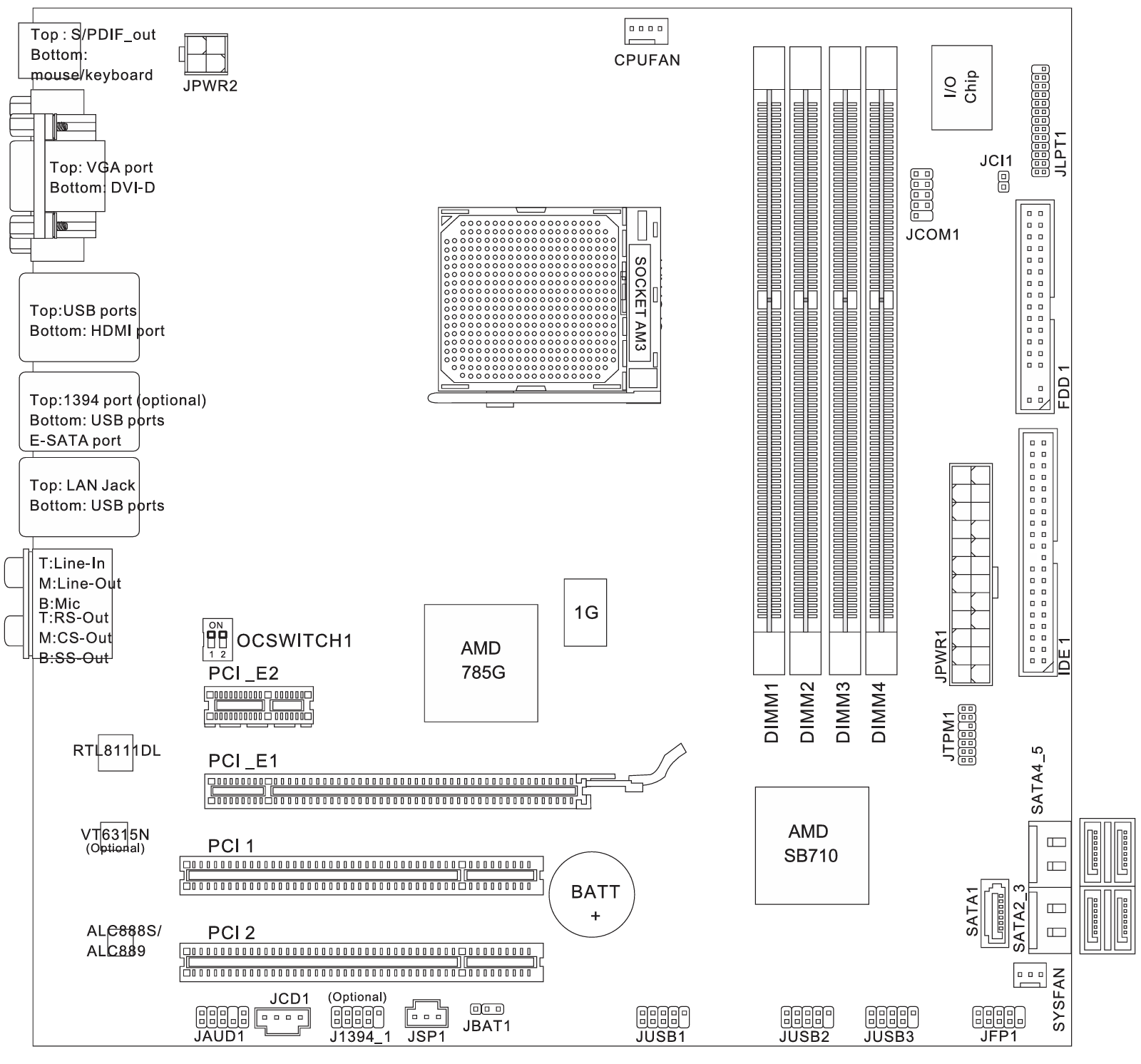

Image 3 of 3 (MSI)
