MICRO EXPRESS, INC. FOREX 386 CACHE
Logs
chipChipset
cpuSockets
PQFP132 PGA121
speedFSB speeds
33MHz40MHz
moboForm factor
Baby AT (max 220 x 330 mm)
dimDimensions
330mm x 218mm
chipCache
64KB128KB256KB
ramMax RAM size
32MB
ramRAM type
30-pin SIMM
pwrPSU connector
AT (6-pin P8 + 6-pin P9)
tag Also known as
connI/O ports
1x
AT Keyboard
cardExpansion slots
5x
16-bit ISA
2x
8-bit ISA
wrench Known issues
  • Leaky Ni-Cd clock battery

The Ni-Cd battery may be leaking, risking damage to PCB layers & nearby components. Promptly remove the battery & clean corrosion/alkaline salts from the board. Use white vinegar to dissolve salts, but exercise caution as vinegar can corrode exposed metals. A thorough examination & repair may be needed. Replace battery with guide: https://github.com/wiretap-retro/Not-A-Varta

Last updated 2024-01-25T22:31:42Z
Board info score is 9.3/10
bios 4 BIOS files available

vendor Award - 1 entry

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
10/05/92-FOREX411/402-114r0adt
Note
Core version
4.20
BIOS version
Logs

vendor AMI - 3 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
30-0501-428034-00101111-121291-FORX
Note
Core version
121291
BIOS version
Logs
POST string
40-0501-001494-00101111-121291-FORX
Note
Core version
12/12/91
BIOS version
Logs
POST string
40-0501-001719-00101111-121291-FORX
Note
Core version
121291
BIOS version
Logs
drv No drivers available

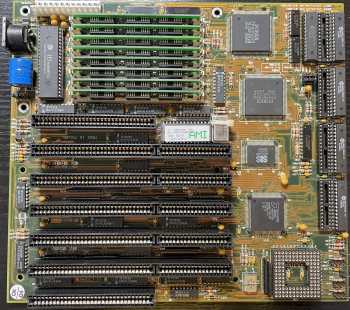

image1 Image 1 of 7 (Microhouse)
image2 Image 2 of 7 (krivulak)
image3 Image 3 of 7 (krivulak)
image4 Image 4 of 7 (krivulak)
image5 Image 5 of 7 (krivulak)
image6 Image 6 of 7 (Retronn aka Enigma)
image7 Image 7 of 7 (Am386DX-40)

Disclaimer

The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
