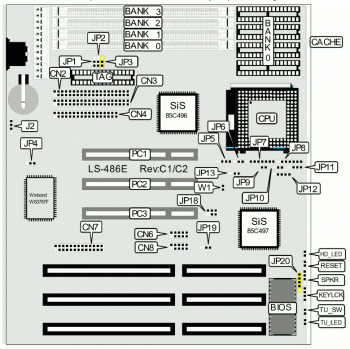

Lucky Star LS-486E Rev:C1/C2 (SIO with TTL chips)
Chipset
Socket
FSB speeds 25MHz33MHz40MHz50MHz
Form factorBaby AT (max 220 x 330 mm)
Dimensions220mm x 190mm
Max RAM size
RAM types
PSU connector
I/O ports1x
AT Keyboard
1x
Floppy interface
2x
IDE interface
1x
PS/2 mouse
1x
Parallel
2x
Serial
Expansion slots3x
16-bit ISA
3x
32-bit PCI
Also known as:
- Acorp <unknown>
Notes:
Rev C1 uses thru hole TTL chips near the LPT header, while rev C2 has surface mount TTL chips. There are versions that support EDO memory, not all of them do, this depends on the revision of the chipset.
Last updated 2024-01-28T21:37:40Z
Board info score is 9.6/10
Chipset parts
Clock Synth / PLL chipsSuper I/O chips
CPU family support
2 files available
Vendor: Award [2 entries]
POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
03/14/96-SiS-496-497/A/B-2A4IBL13C-00
Note
Core version
4.51G
BIOS version
Logs
1 known good driver available
Name
Version
OS support
Size
Filename
Name
Version
BC318
OS support
MS-DOS
OS/2 Warp 3.x
Windows 3.1x
Windows NT 3.1
Windows NT 3.5x
Windows NT 4.0
Size
Empty
Filename
Name
Version
OS support
Size
Filename
Name
Version
BC318
OS support
MS-DOS
OS/2 Warp 3.x
Windows 3.1x
Windows NT 3.1
Windows NT 3.5x
Windows NT 4.0
Size
Empty
Filename
Name
Version
BC310
OS support
MS-DOS
NetWare Server 3
OS/2 1.x
Windows 3.0
Windows NT 3.1
Size
97.9KB
Filename
4 board documents available
Release date
File
Logs
Family
Release date
File
Logs
Image 1 of 6 (computerguy096)
Image 2 of 6 (computerguy096)
Image 3 of 6 (BreakPoint)
Image 4 of 6 (rad)
Image 5 of 6
Image 6 of 6
